Dartmoor MTB Crank Thorn 170mm, Spindle Length 160mm, Matt Black
Dartmoor MTB Crank Thorn 170mm, Spindle Length 160mm, Matt Black View larger

Dartmoor MTB Crank Thorn 170mm, Spindle Length 160mm, Matt Black

  • DART-A2202
  • New

$ 148.63

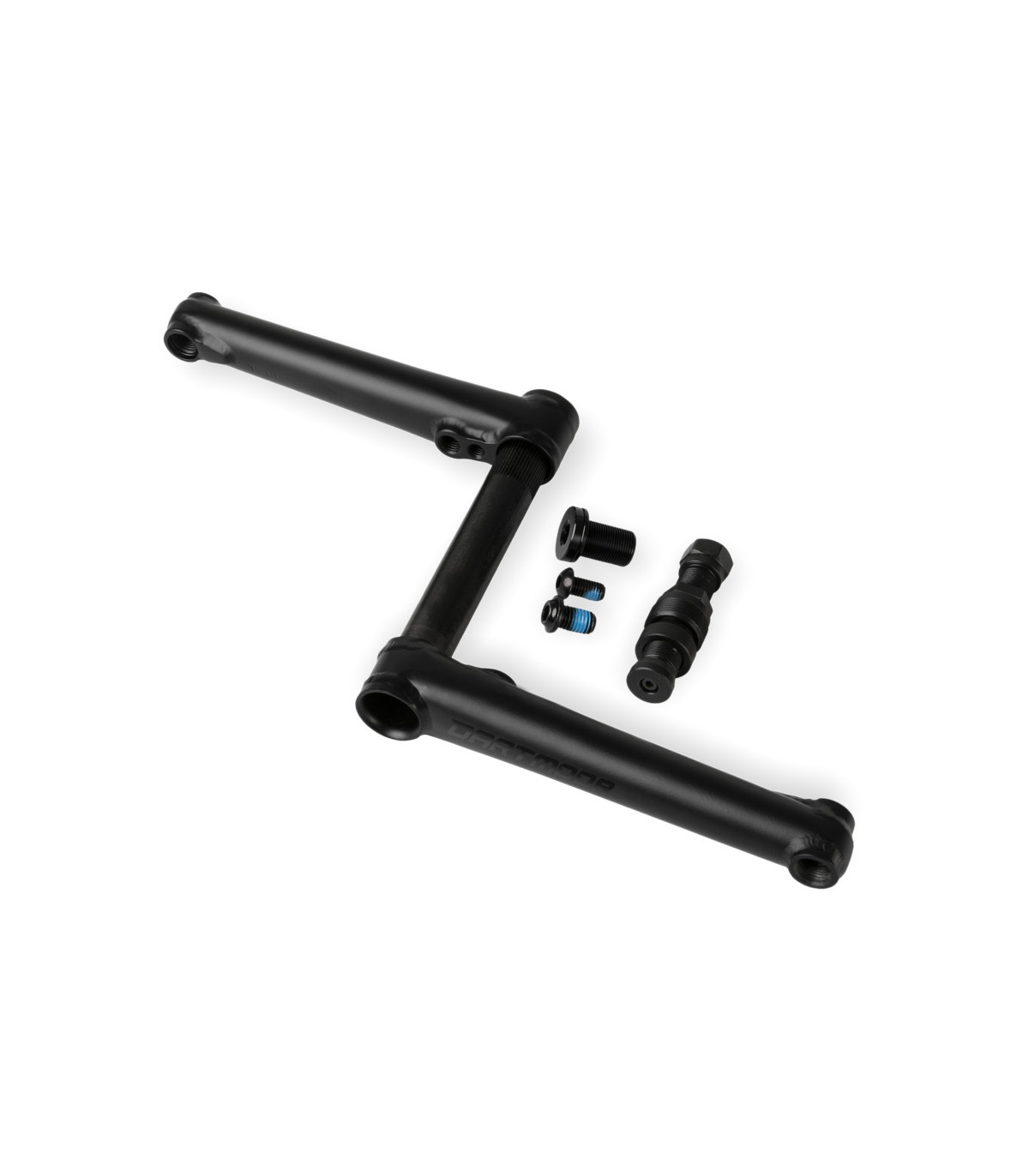

2-pcs design cranks made of heat-treated Cr-Mo 4130 steel with 22mm spindle and 48 splines. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle (welded to the right arm), 2 spindle bolts (alu 7075-T6 and Cr-Mo), 2 sprocket bolts (bigger one is hollow), and assembly/disassembly tool.

2-pcs design cranks made of heat-treated Cr-Mo 4130 steel with 22mm spindle and 48 splines. RHD/LHD compatible. Two sprocket holes to fit all sprocket sizes. Small gusset to make the pedals assembly area stronger. Includes arms, spindle (welded to the right arm), 2 spindle bolts (alu 7075-T6 and Cr-Mo), 2 sprocket bolts (bigger one is hollow), and assembly/disassembly tool. Available with 160mm spindle designed to work with Euro external bearings (like Dartmoor Euro eX BB 22mm) with 68mm or 73mm BB shells to create an extra strong and efficient combination with frames like Two6Player or Shine.


SPECIFICATION

  • Color: Matt Black
  • Arms Length: 170mm
  • Spindle: 22mm hollow
  • Spindle Length 160mm
  • Splines: 48
  • Spindle Bolt: 5/8”x24T (8mm Allen key)
  • Weight: 745g (with alu spindle bolt), 763g (with Cr–Mo spindle bolt)
