Dartmoor Hub Reel Expert E-Bike Boost, Rear, 148x12mm, 108 Engagement Points, 32H, Petrol

Model: DART-A2887
Condition: New

$ 163.65

More info

The ultra-light Reel Expert series rear hubs are the upgraded Reel Pro v.2 hubs that were available before.
The Reel Expert hubs are equipped with a new wide pawls system with 108 engagement points and a reinforced structure
to meet the requirements of modern drivetrains with cassettes generating very high loads when uphilling on a 51T or 52T cog.
Each pawl has 2 teeth, catching the ratchet ring at the same time to increase the reliability of the pawls system.

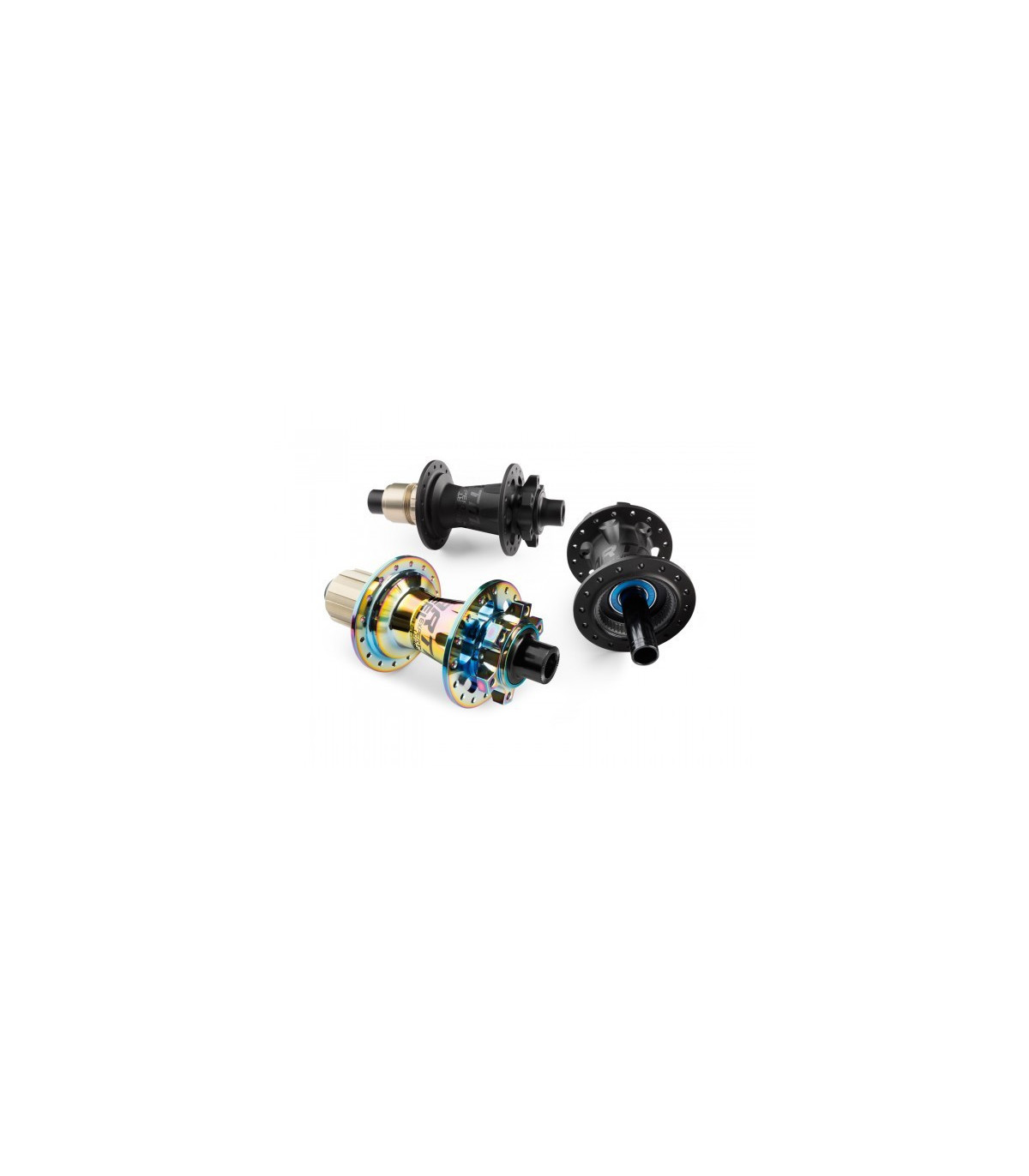

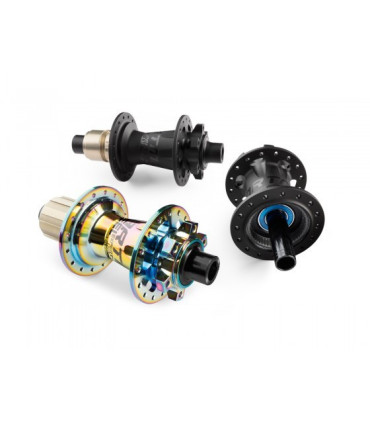

There are four versions of Reel Expert rear hubs, three are equipped with aluminum 7075 internal axle and freehubs
compatible with Shimano HG (a common type of freehub), Shimano Microspline, or SRAM XD standards. The fourth version is dedicated to e-bikes
and is equipped with a Cr-Mo steel internal axle and a Cr-Mo steel Shimano HG freehub to withstand the loads generated by the drivetrains of gravity e-bikes.
The Reel Expert rear hubs are equipped with highest quality sealed bearings with LLU full-contact seals branded with the Dartmoor logo and custom selected Mobil
waterproof grease for the best mud and dust protection. There are 5 sealed bearings in the hubs with Shimano HG and SRAM XD freehubs and 6 sealed bearings
in the hubs with Shimano Microspline freehub.

Specification:

Color: petrol
Size: 148x12mm
Number of holes: 32
Bearings: precision sealed bearings with high-density grease and full contact LLU sealings
Bearings type: body: 2x6902; freehub Shimano HG: 2x15267 and 1x6902
Hub-shell: AL 6061-T6
Axle: 15mm, Cr-Mo steel
Cones: AL 7075-T6, push-in (both sides)
Freehub: Cr-Mo steel: common Shimano HG
Pawls: 6 pawls with 6 individual springs
Engagement Points: 108
Weight: 298g
Note: illustrative photo
