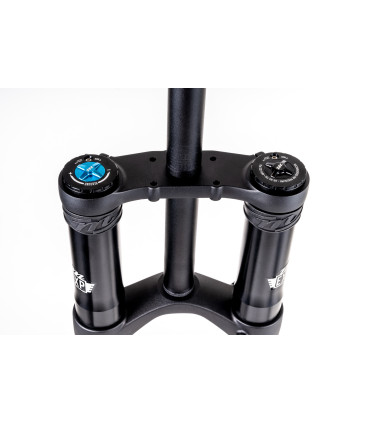

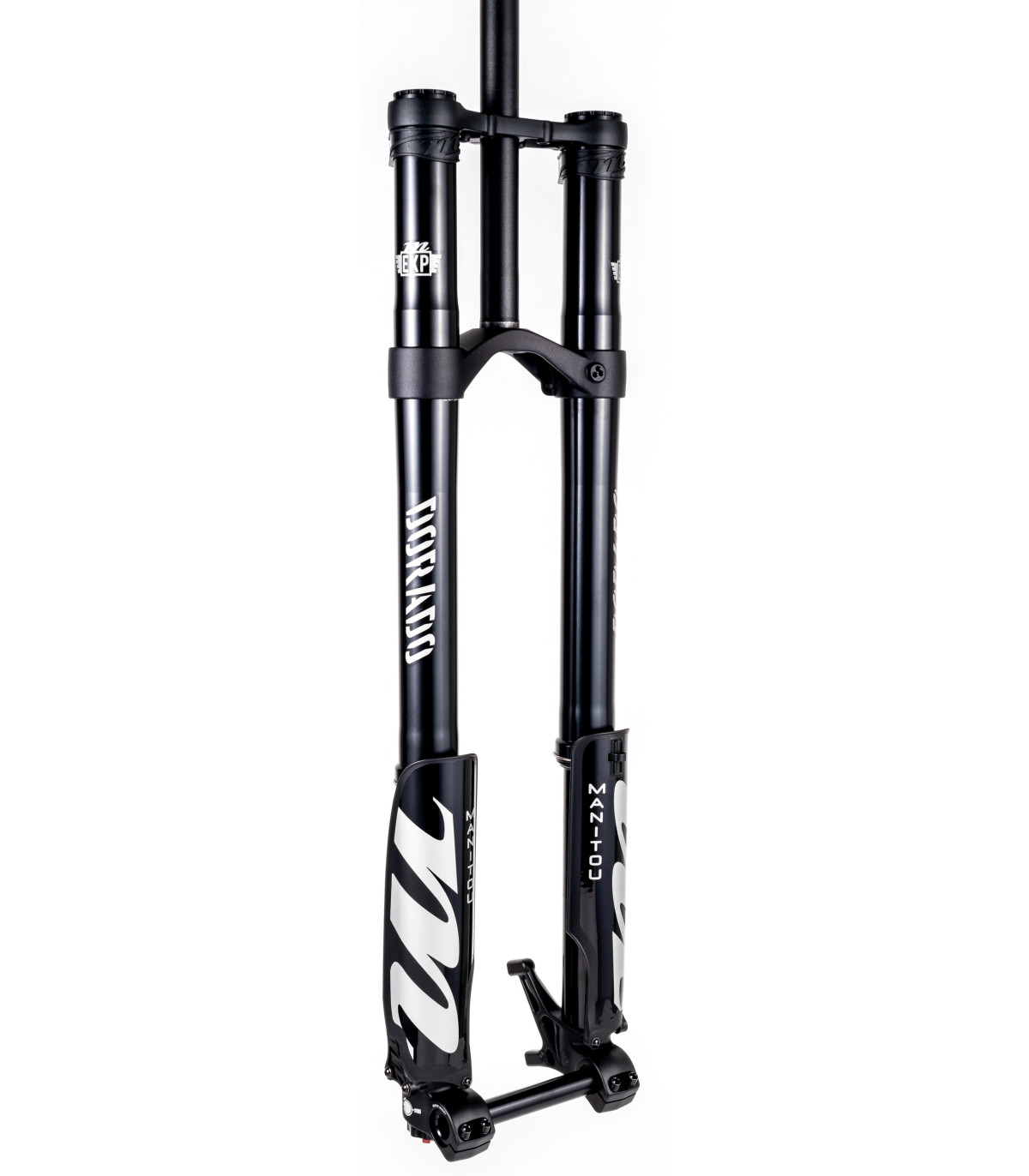

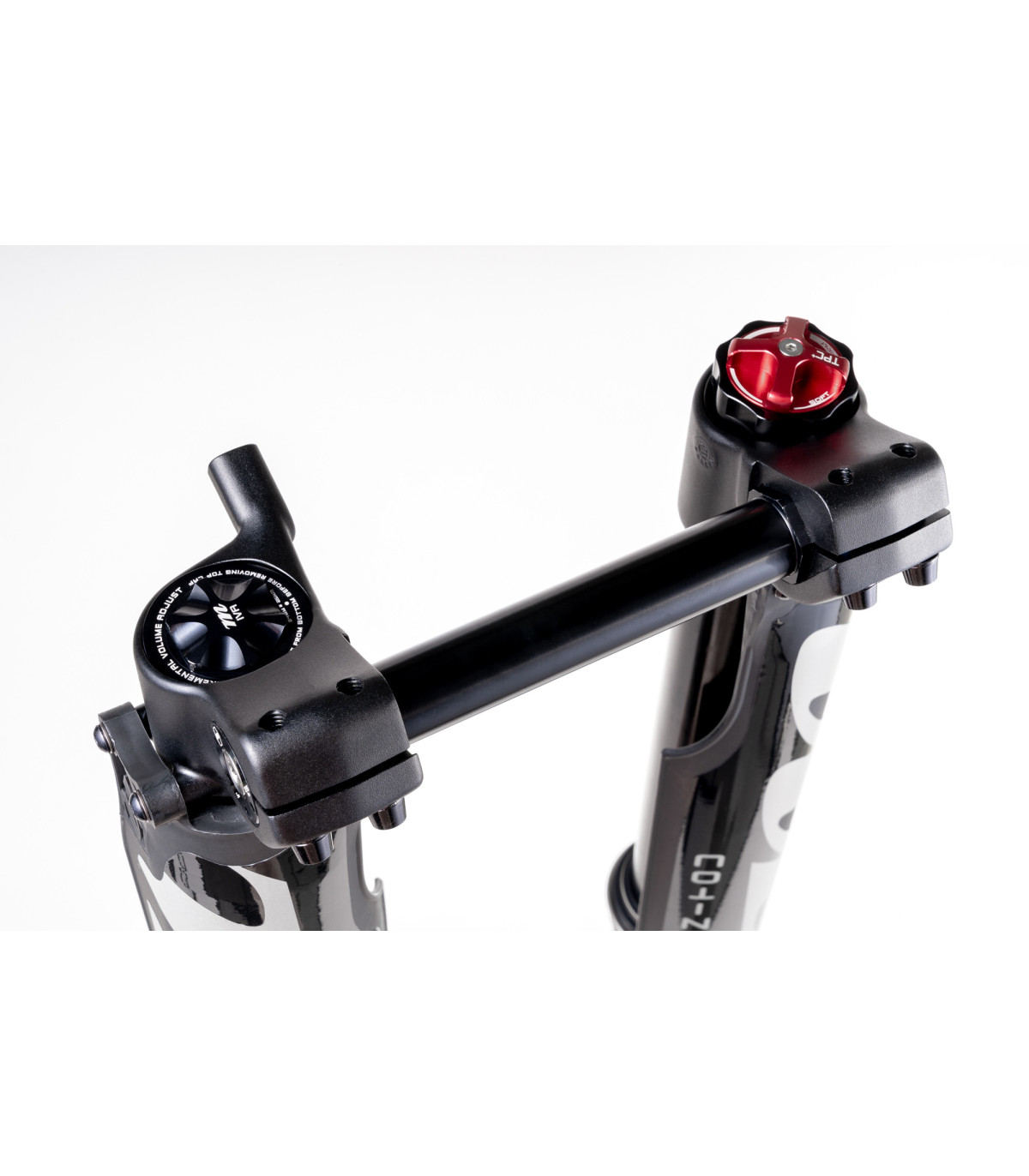

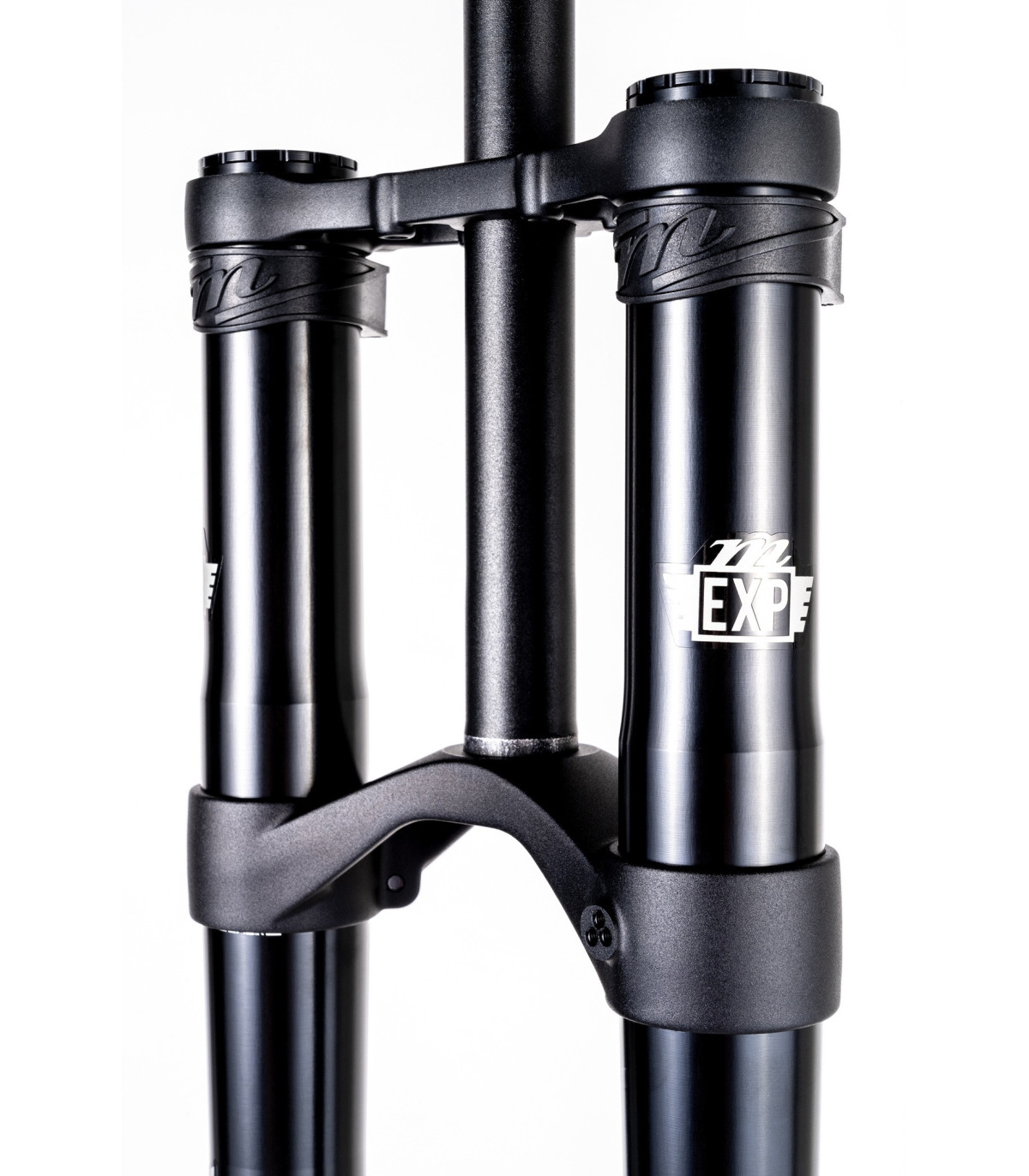

Manitou Dorado Expert Suspension Fork 27.5"/29" 203mm 57mm Offset Boost

The Dorado Expert is engineered for riders who demand the very best in downhill performance. Its 37 mm stanchions, Dorado AIR spring with IVA tuning, and the proven TPC+ damping system with HBO deliver unmatched stability, small-bump sensitivity and control on the roughest tracks. Built for speed, big hits and uncompromised confidence, it’s also e-bike ready and compatible with a dedicated fender.

Key features

• Dorado AIR + IVA system for tunable progression and exceptional sensitivity.

• TPC+ with HBO ensures consistent damping and protection against harsh bottom-outs.

• Full adjustability including high/low-speed compression, rebound and air-spring volume.

• 20 mm Boost axle for maximum stiffness in demanding DH conditions.

• TSR valves for quick pressure equalization.

• E-bike compatible.

Technical specifications

Wheel size: 27.5", 29"
Travel: 180, 190, 203 mm (internally adjustable)
Spring: Dorado AIR with IVA
Compression damping: TPC+ with HBO
Rebound damping: TPC Cartridge
Adjustments: preload, high-speed compression, low-speed compression, rebound, air-spring volume
Brake mount: Post Mount 203 mm (223 mm max)
Stanchion diameter: 37 mm
Stanchion material: 6000-series aluminium
Lower leg material: 6000-series aluminium
Steerer tube: 1 1/8"
Axle: 110 × 20 mm BOOST Thru Axle
Max tire size: 67 mm
Weight: 3120 g
Notes: TSR valves, e-bike compatible, fender-mount ready
