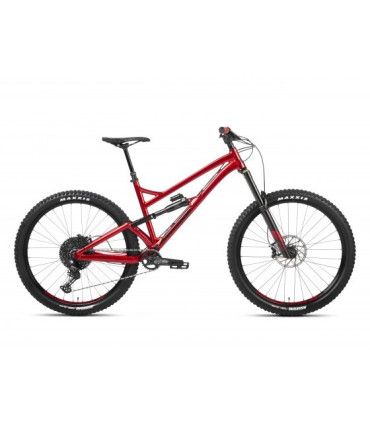

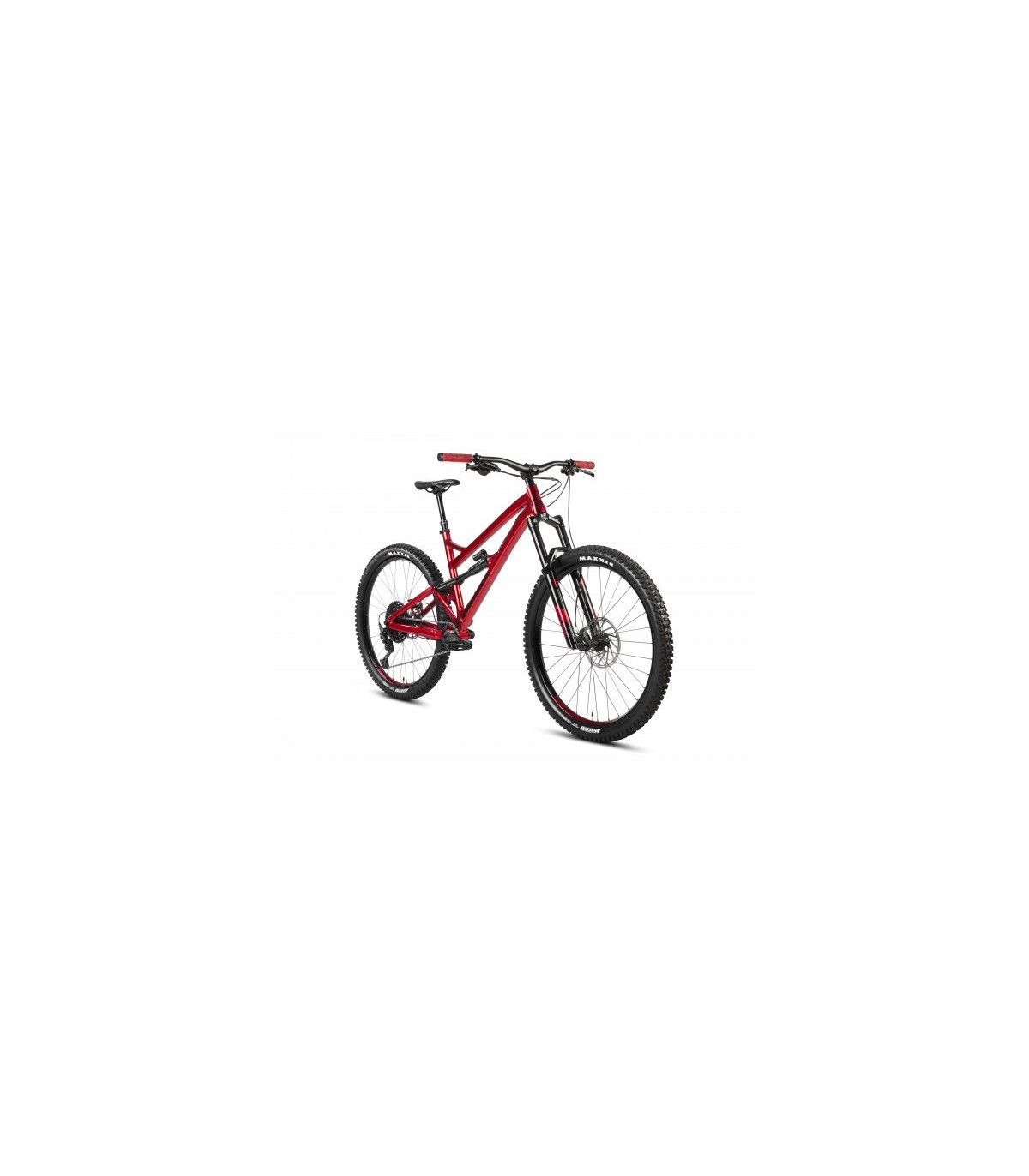

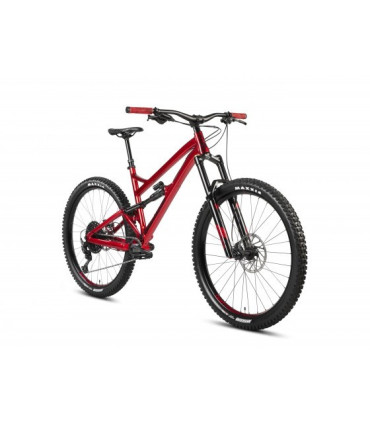

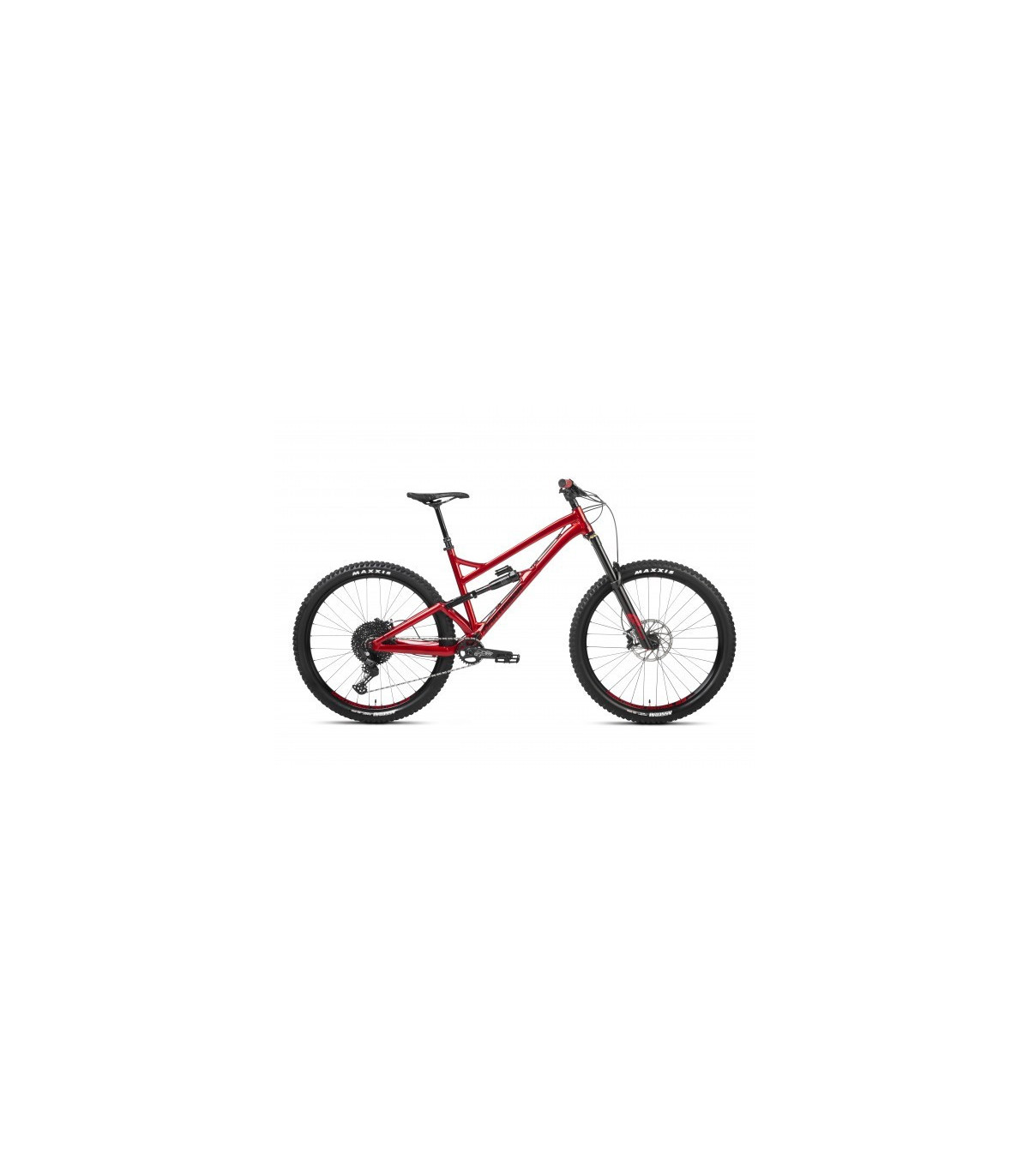

True enduro weapon on 29-inch wheels, equipped with a top version of X-Fusion front suspension, Rock Shox air shock with piggyback, Shimano Deore 5100 groupset with a wide range 11-51T cassette and 4-piston disc brakes with 200mm front rotor. All you need for fast riding in the most demanding conditions, and having it under control.
True enduro weapon on 29-inch wheels, equipped with a top version of X-Fusion front suspension, Rock Shox air shock with piggyback, Shimano Deore 5100 groupset with a wide range 11-51T cassette and 4-piston disc brakes with 200mm front rotor. All you need for fast riding in the most demanding conditions, and having it under control.
MAIN FEATURES
- 160/160mm front/rear suspension travel
- blackbird 29 frame with 230x65mm metric shock standard
- Top version of X-fusion Trace 36 fork with Roughcut damper which features high and low speed, independently adjustable compression and rebound damping adjustment
- Rock Shox Super Deluxe Select metric shock with DebonAir spring

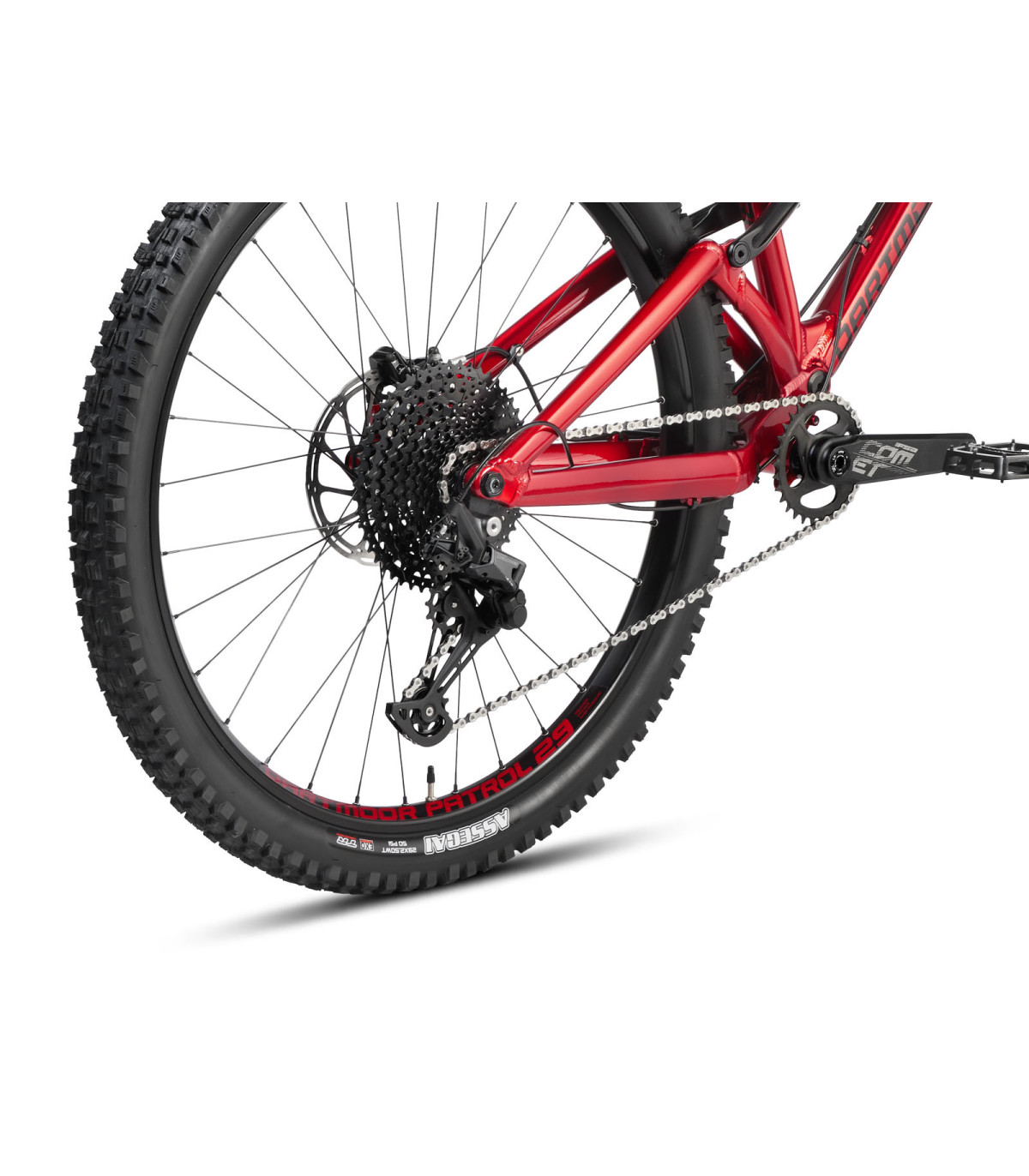

- 11-speed Shimano Deore 5100 derailleur/shifter with Sunrace CSMS7 11-51T cassette
- FSA comet Heavy Duty forged crankset with 24mm Chromoly spindle and 32T direct mount narrow-wide chainring
- High-quality Maxxis Assegai 29X2.50 tires with cut and abrasion-resistant Exo protection
- Our custom-designed, tubeless-ready Patrol rims with 30mm inner width and sleeved joint

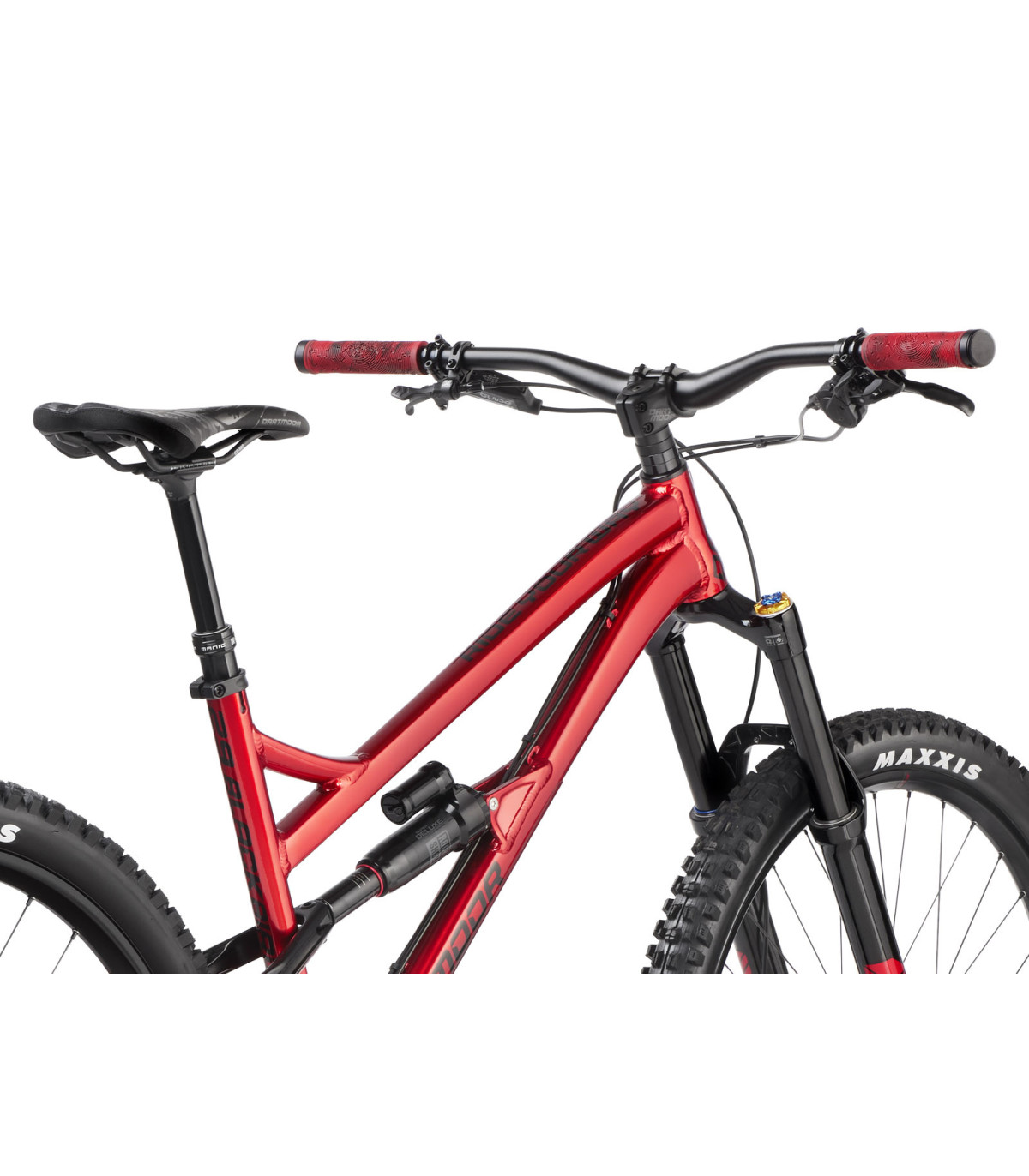

- Oversized 35mm cockpit with all-new 810mm wide Viper handlebar and short Viper stem
SPECIFICATION
- WHEEL SIZE: 29"
- FRAME: glossy Red Devil, AL 6061-T6, travel 160mm

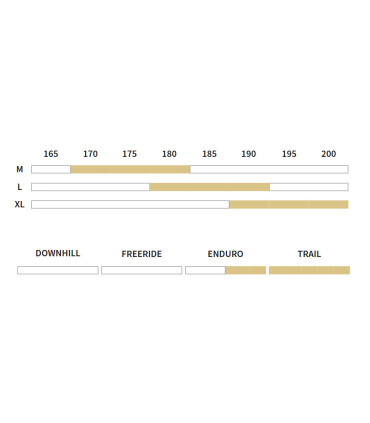

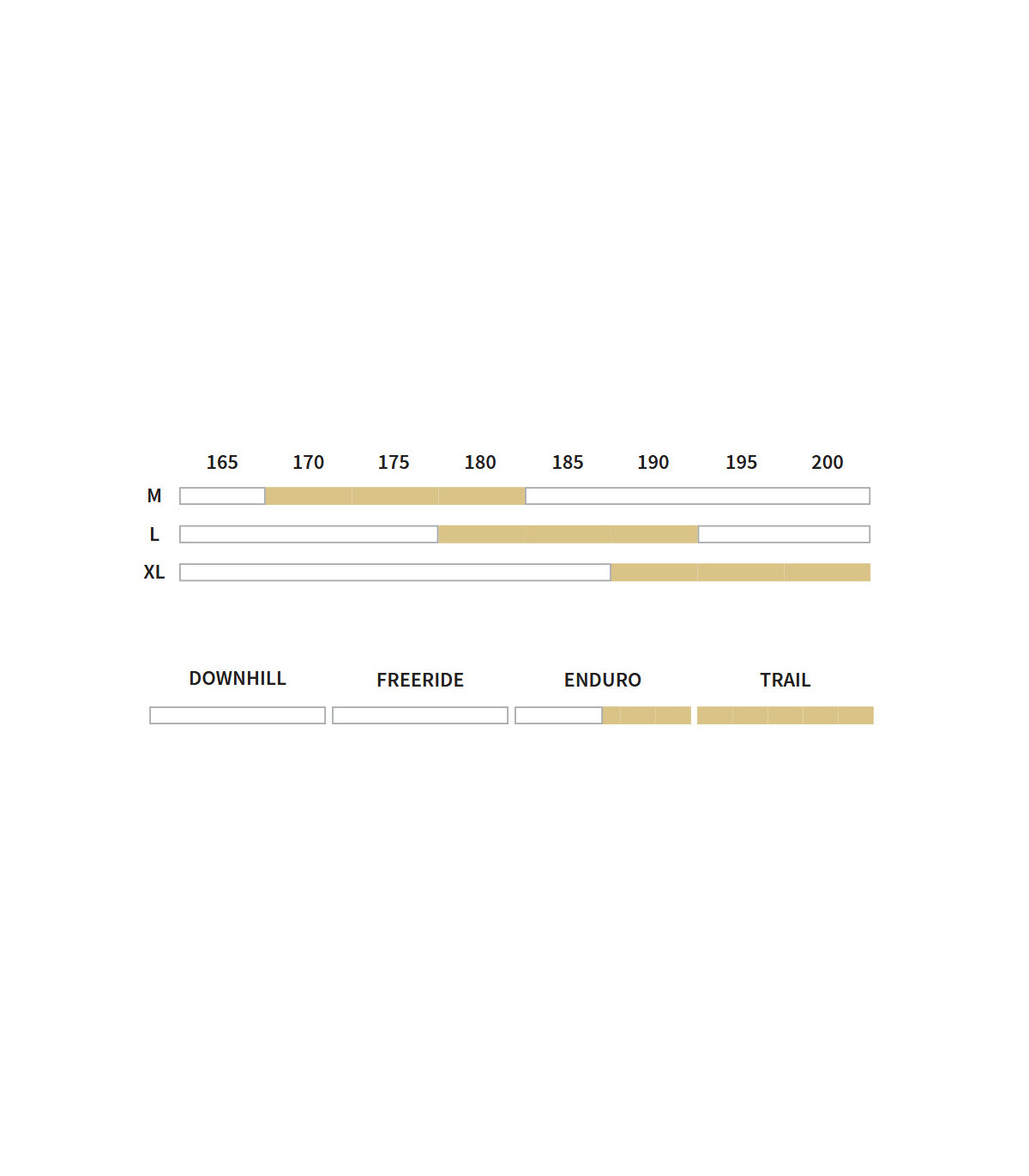

- FRAME SIZE: Medium, Large, XLarge
- COLOR: glossy Red Devil
- FORK: X-Fusion Trace36 HLR 29”, Boost, travel 160mm, axle 15mm, tapered

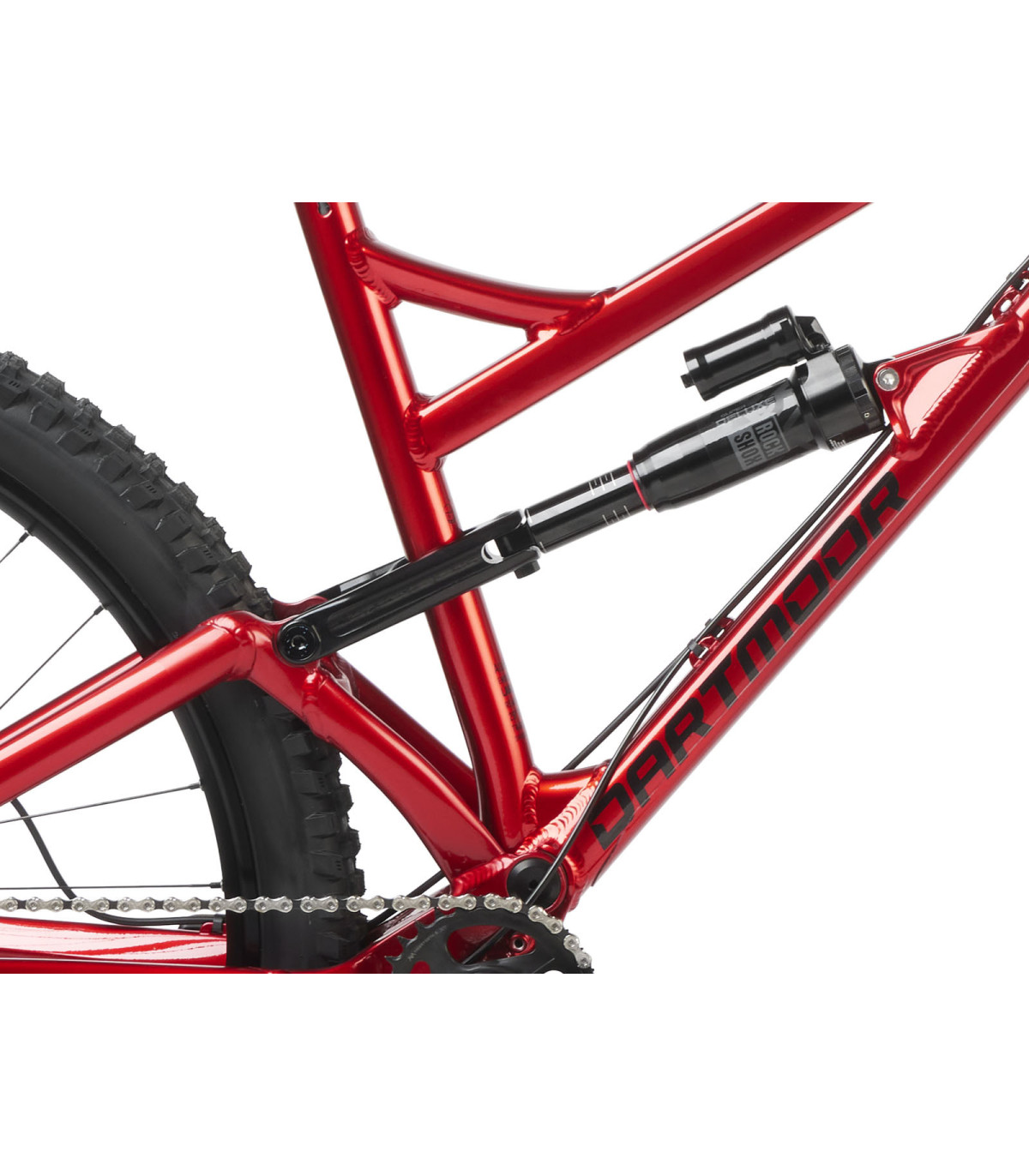

- SHOCK: Rock Shox Super Deluxe Select, DebonAir, 230x65mm
- SHOCK HARDWARE: 22.2x8mm
- HEADSETS: Dartmoor Blink OEM

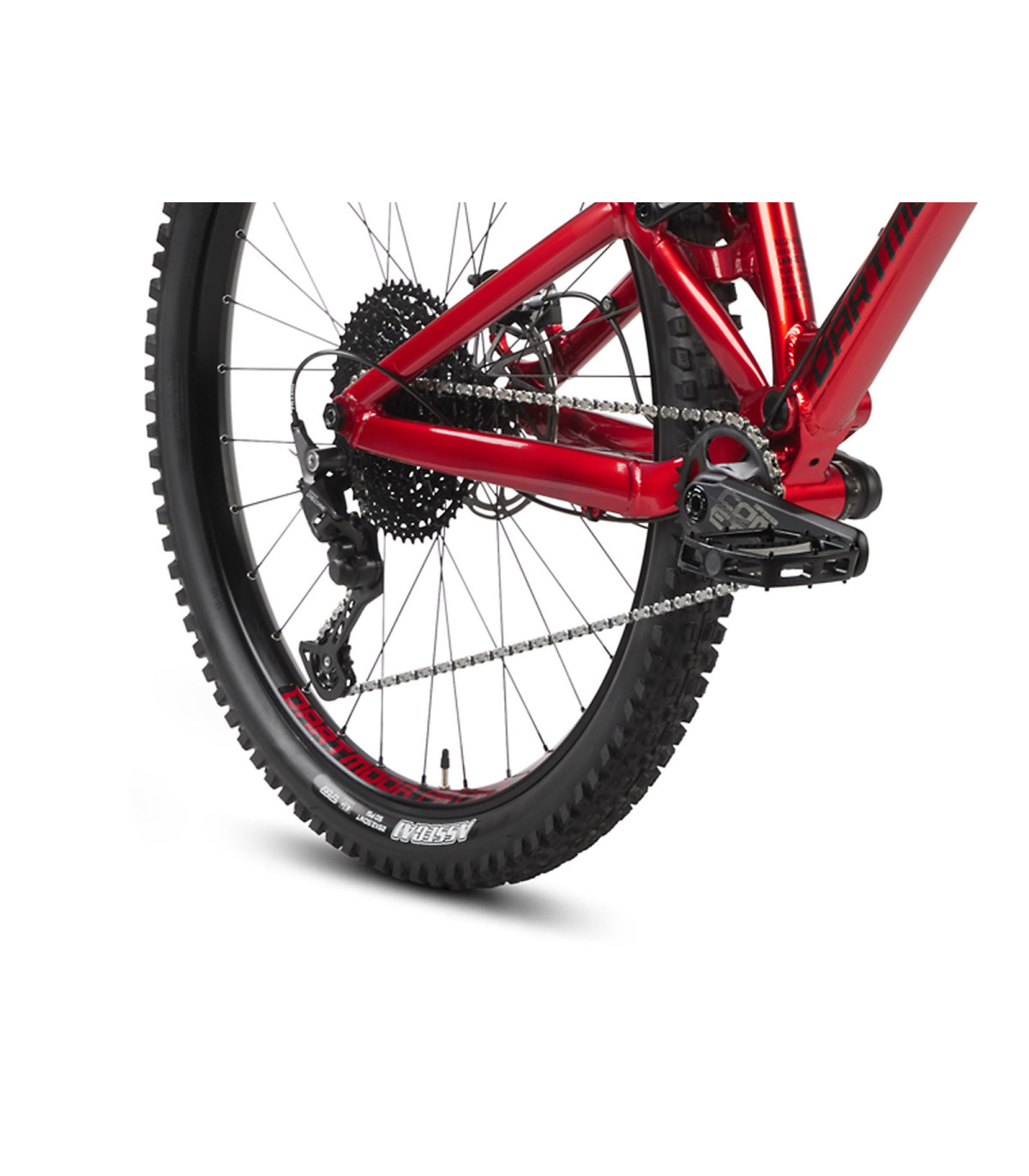

- DERAILLEUR: Shimano Deore M5100 1X11
- SHIFTER: Shimano Deore M5100-R, 11–speed
- BRAKES: SRAM Guide T, 4-piston brakes, rotors SRAM Centerline front 200mm/rear 180mm
- CRANKSET: FSA Comet Heavy Duty, 175mm (XL, L) / 170mm (M)
- CHAINRING: Direct mount 32T
- CASSETTE: Sunrace CSMS7, 11-51T
- CHAIN: KMC X11
- PEDALS: Dartmoor Vibe
- RIMS: Dartmoor Patrol 29", 32H, F/V, tubeless ready
- FRONT HUB: Dartmoor Reel Boost 110x15mm, 32H
- REAR HUB: Dartmoor Reel Boost 148x12mm, 32H
- TIRES: Maxxis Assegai, 29X2.5, WT, Foldable, EXO/TR
- HANDLEBAR: Dartmoor Viper 810mm, Ø35mm
- STEM: Dartmoor Viper, Ø35mm
- GRIPS: Dartmoor Maze
- SADDLE: Dartmoor Leaf Pro
- SEATPOST: X-Fusion Manic, travel 170mm (XL, L) / 150mm (M), Ø30.9mm
- WEIGHT: 15.95kg (w/o pedals)
