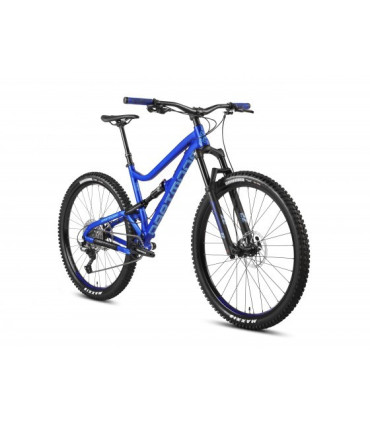

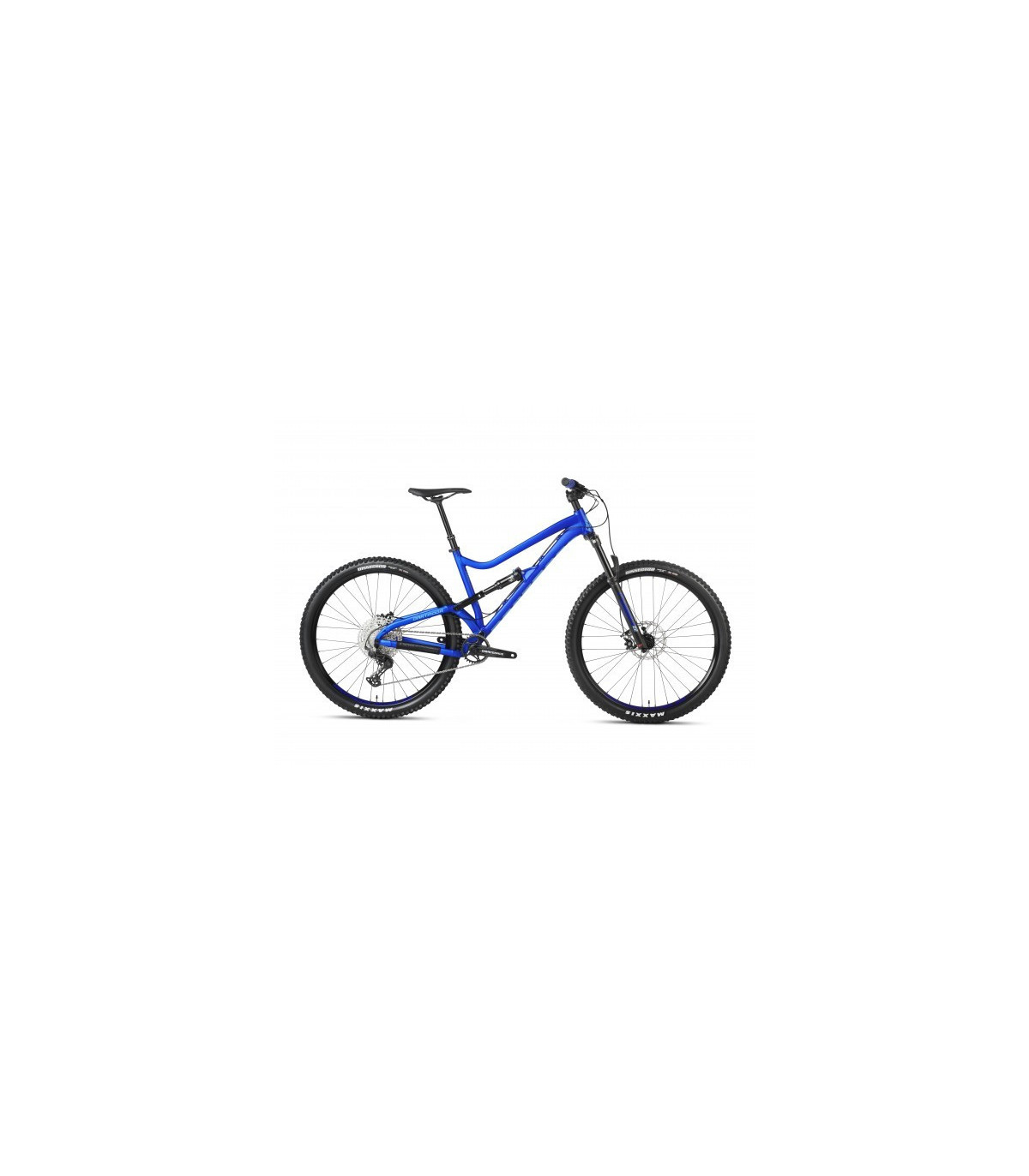

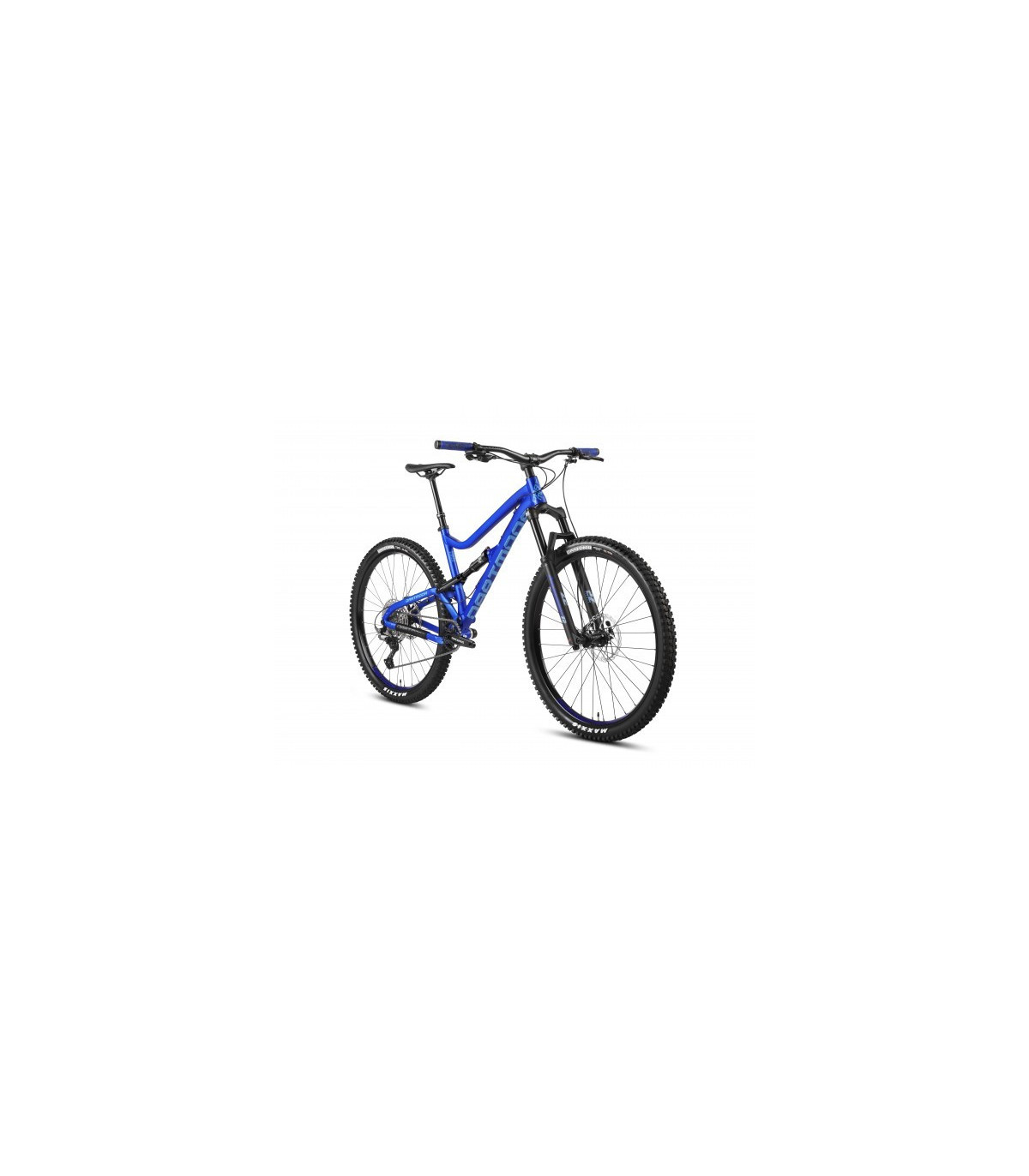

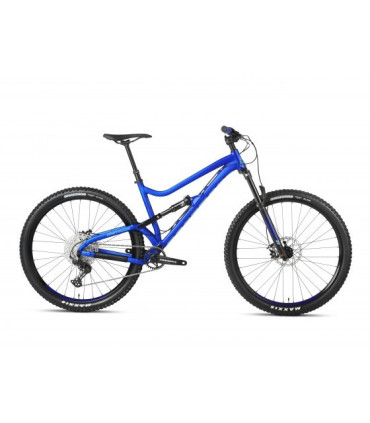

This trail bike on 29-inch wheels is fully capable also for more aggressive riding – from difficult mountain trails to bike park flow trails. Agile and jumpy character push you into the air, but also well-balanced geometry gives you more fun on trails and long days in the saddle. A solid frameset paired with a top performance kit ensures safety, plenty of fun, and a trouble-free bike!
This trail bike on 29-inch wheels is fully capable also for more aggressive riding – from difficult mountain trails to bike park flow trails. Agile and jumpy character push you into the air, but also well-balanced geometry gives you more fun on trails and long days in the saddle. A solid frameset paired with a top performance kit ensures safety, plenty of fun, and a trouble-free bike!
MAIN FEATURES
- 140/130mm front/rear suspension travel
- Bluebird 29 frame with metric shock standard
- The suspension provided by the Marzocchi Bomber Z2 fork and Fox DPS shock

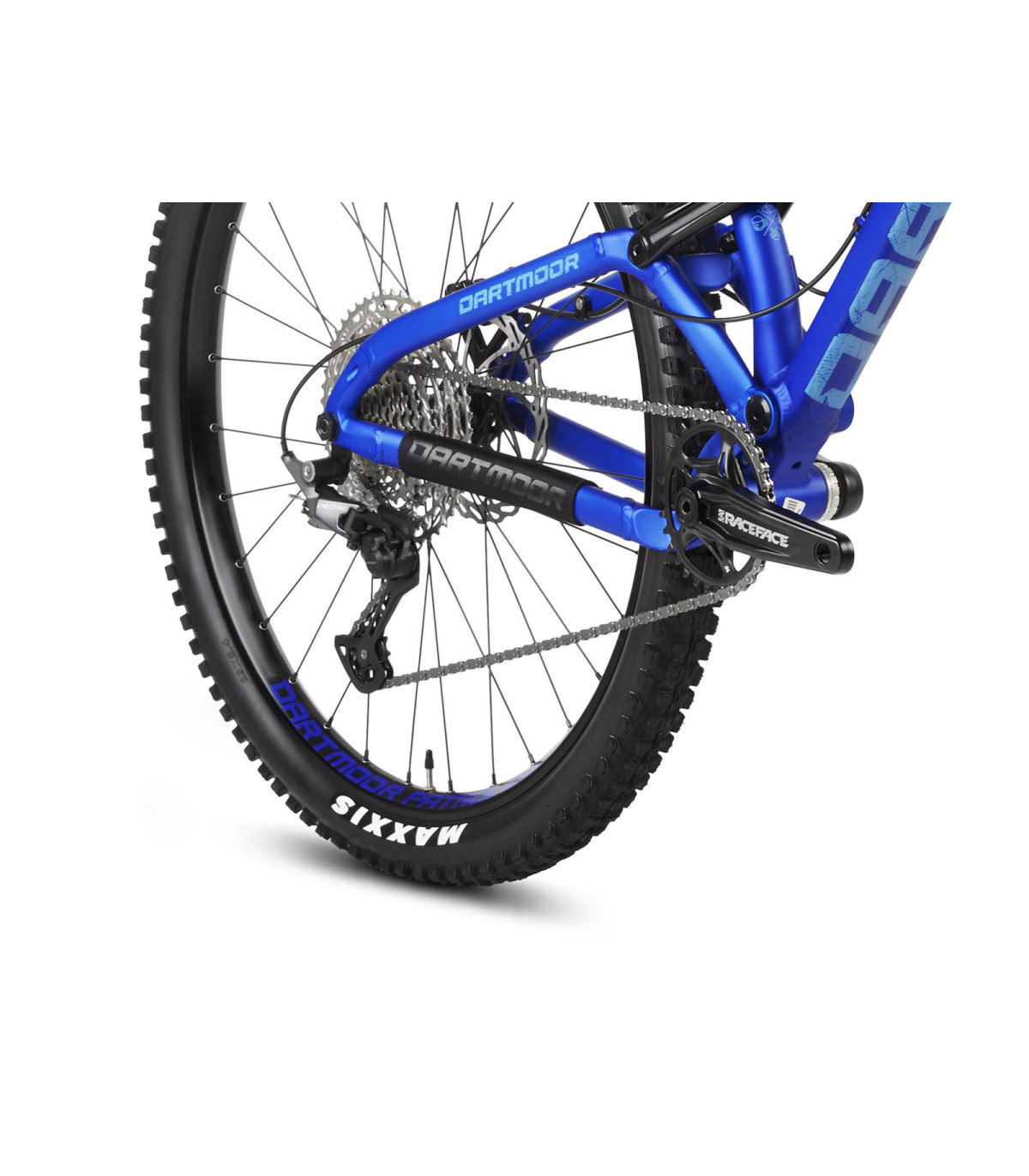

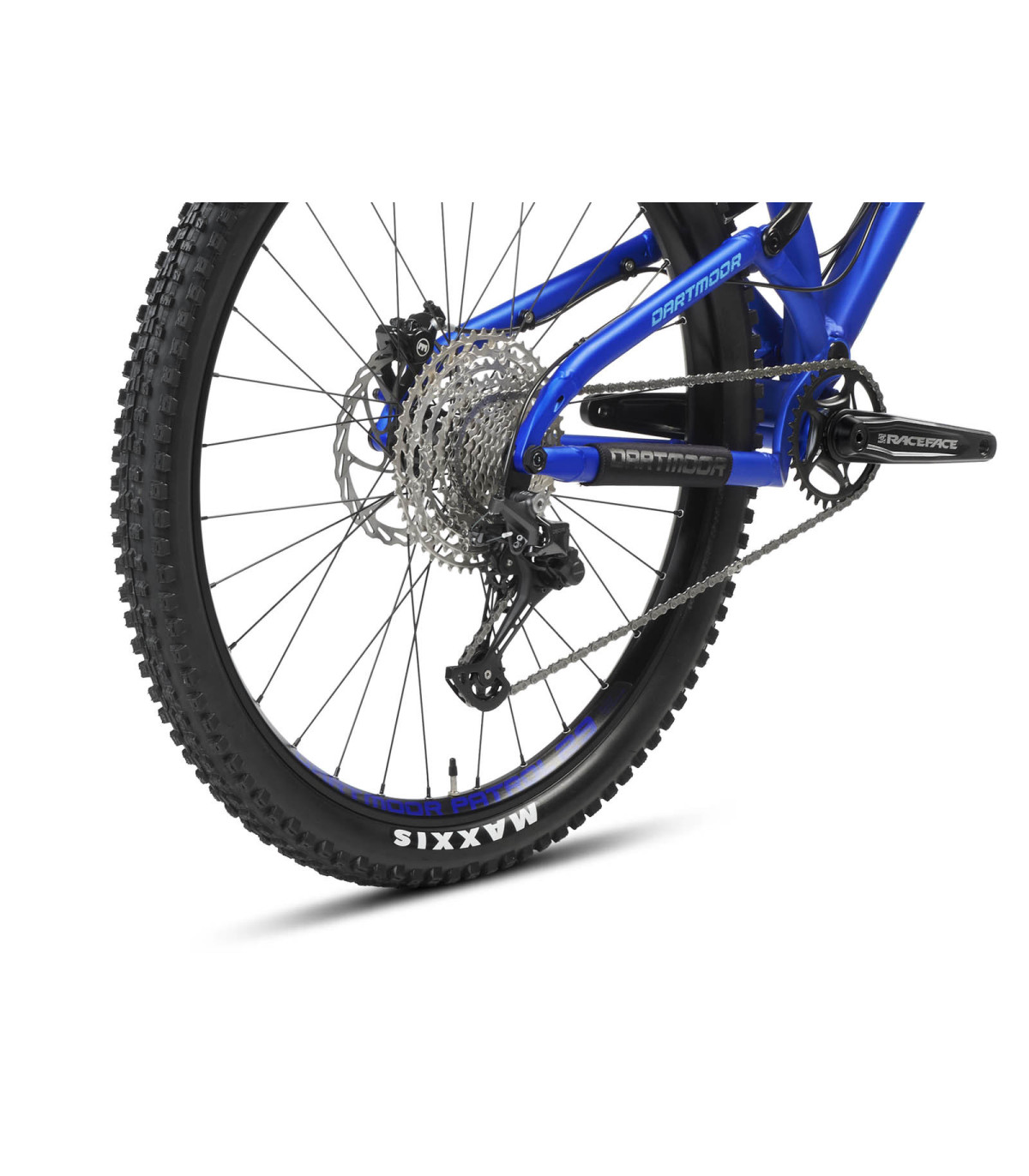

- 11-speed Shimano Deore 5100 drivetrain with Sunrace 11-51T cassette
- Trail riding dedicated Race Face Ride crankset with direct mount chainring
- Magura MT4N brakes
- Rear and front wheels rolling on the Dartmoor Reel Expert hubs
- High-quality Maxxis Dissector 29x2.4 tires with cut and abrasion-resistant EXO protection
- Our custom-designed, tubeless-ready Patrol rims with 30mm inner width and sleeved joint

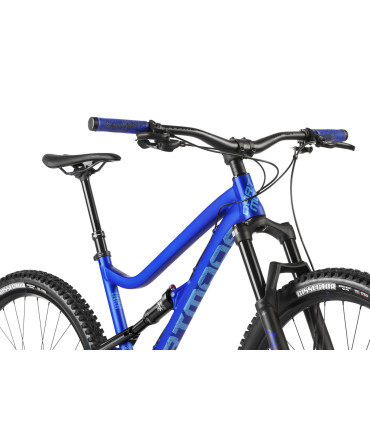

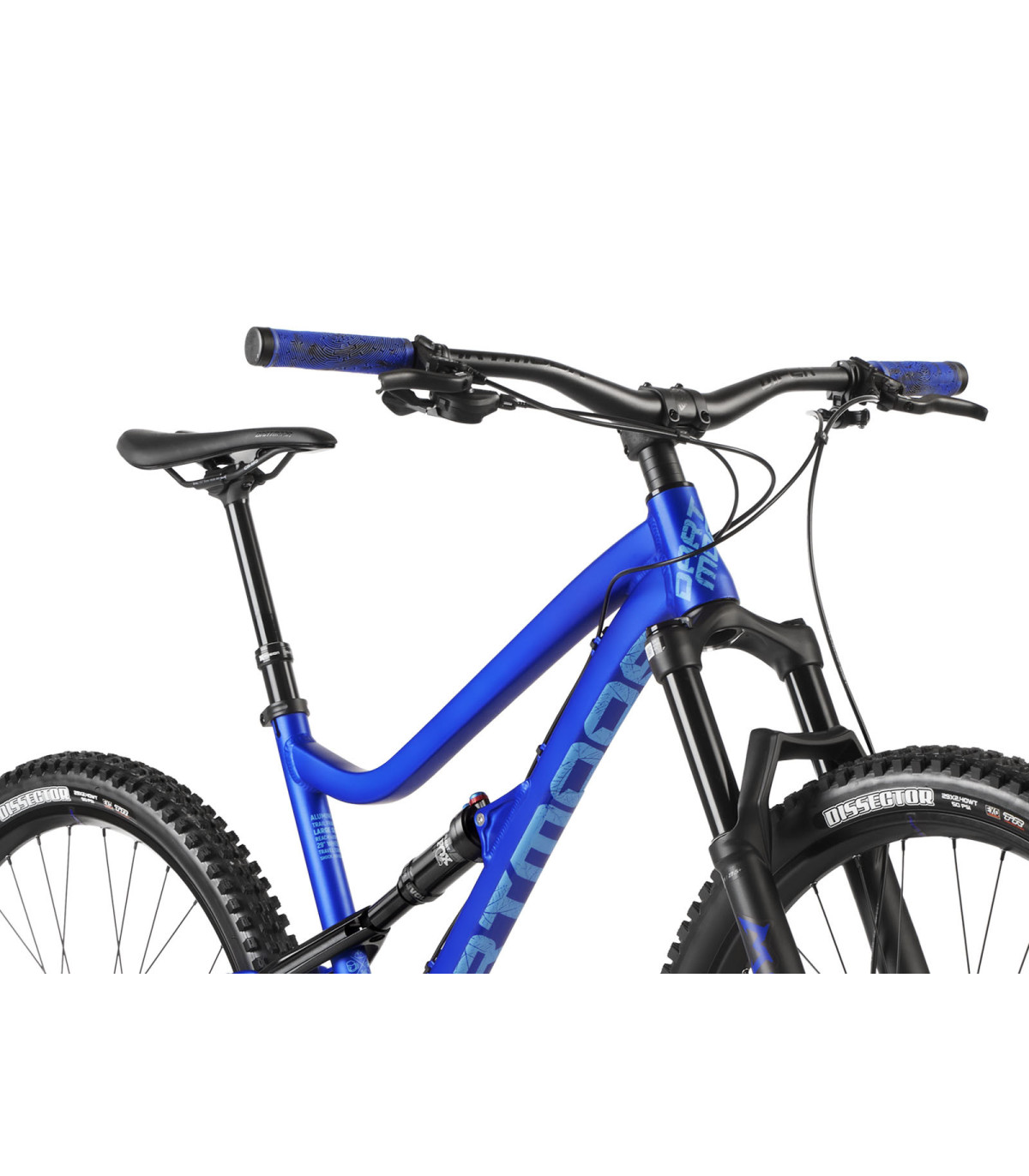

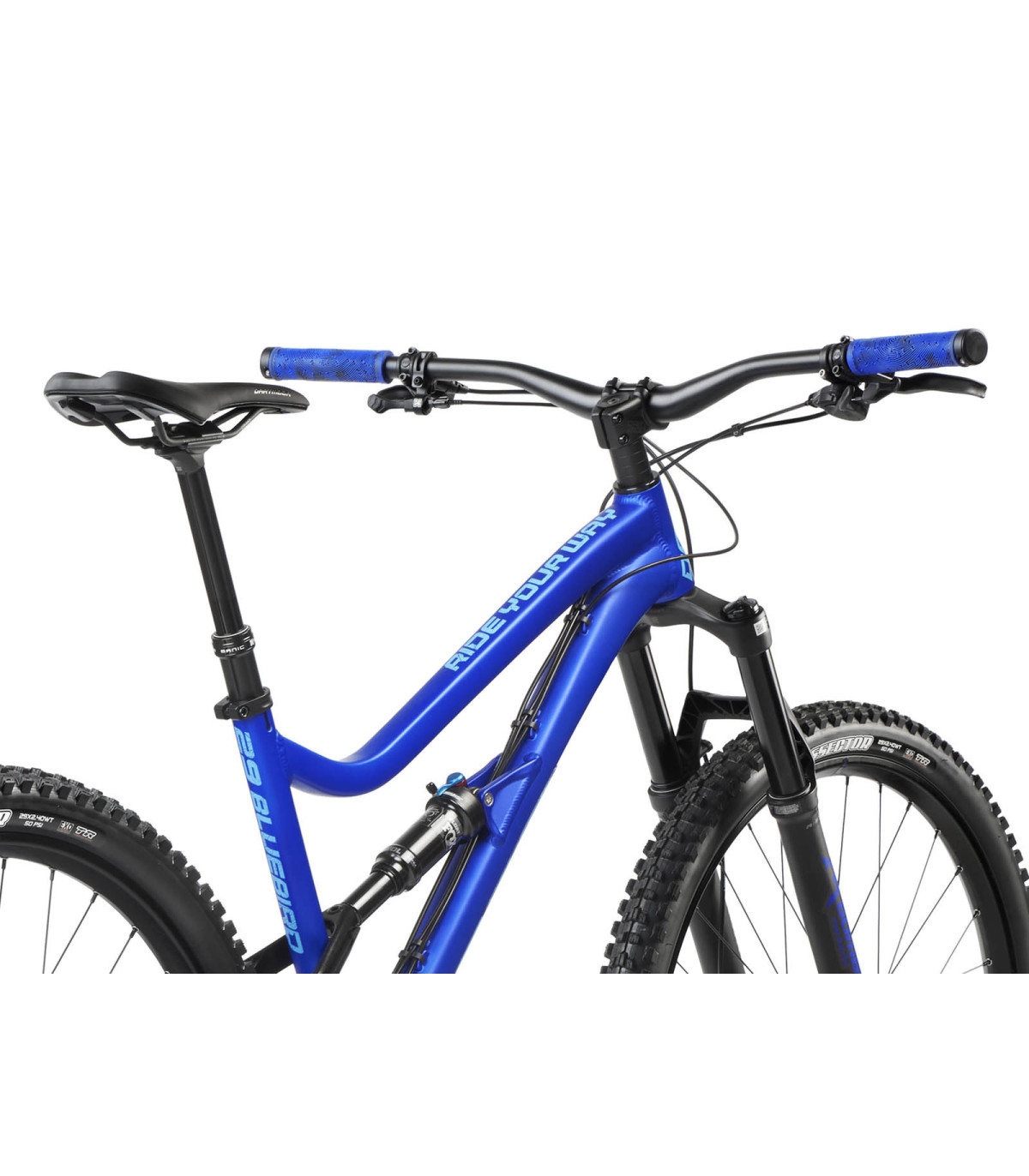

- Oversized 35mm cockpit with all new 810mm wide Viper handlebar and short Viper stem
SPECIFICATION
- WHEEL SIZE: 29"
- FRAME: matt Space Blue, AL 6061-T6, travel 130mm

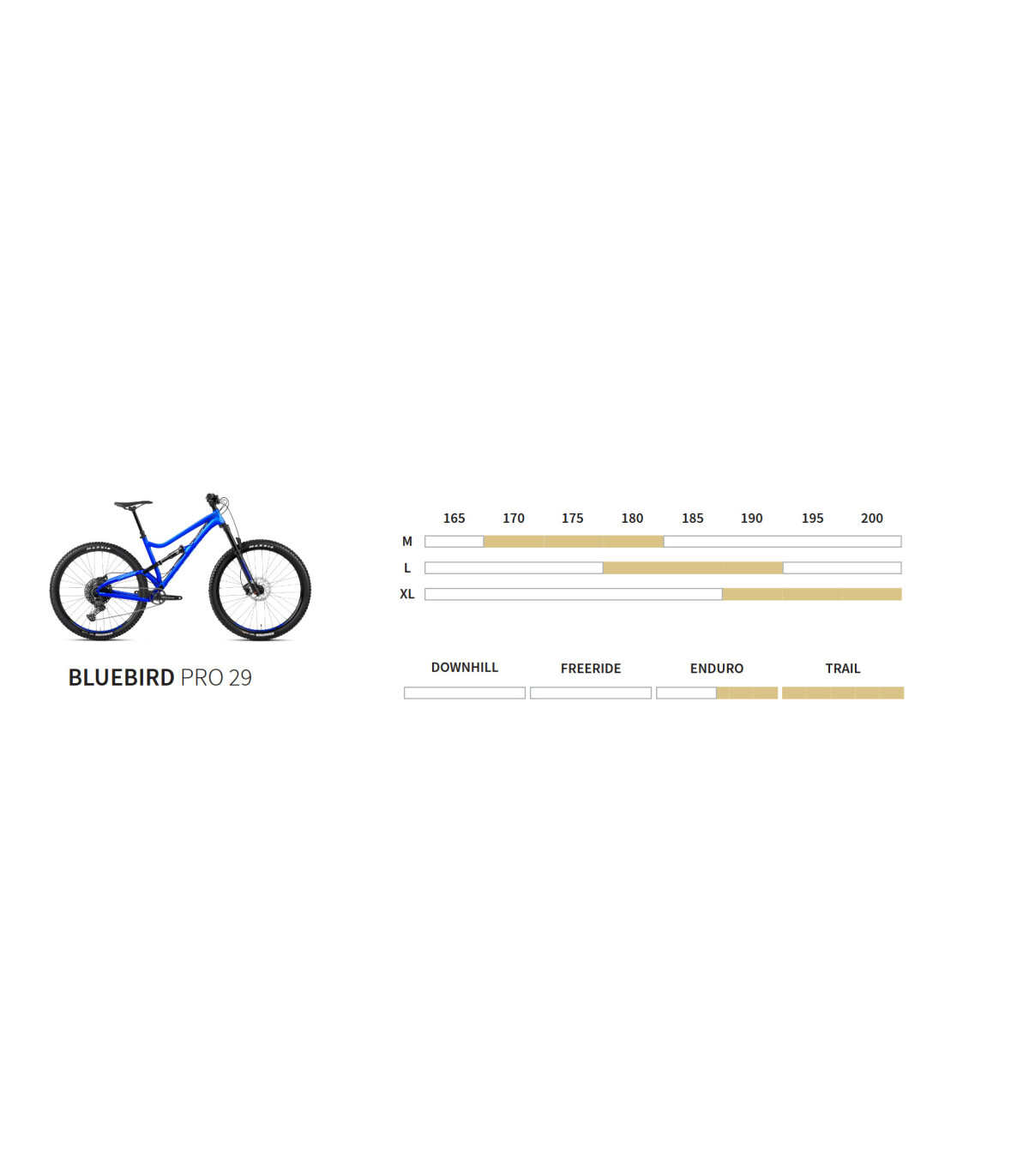

- FRAME SIZE: Medium, Large, XLarge
- COLOR: matt Space Blue

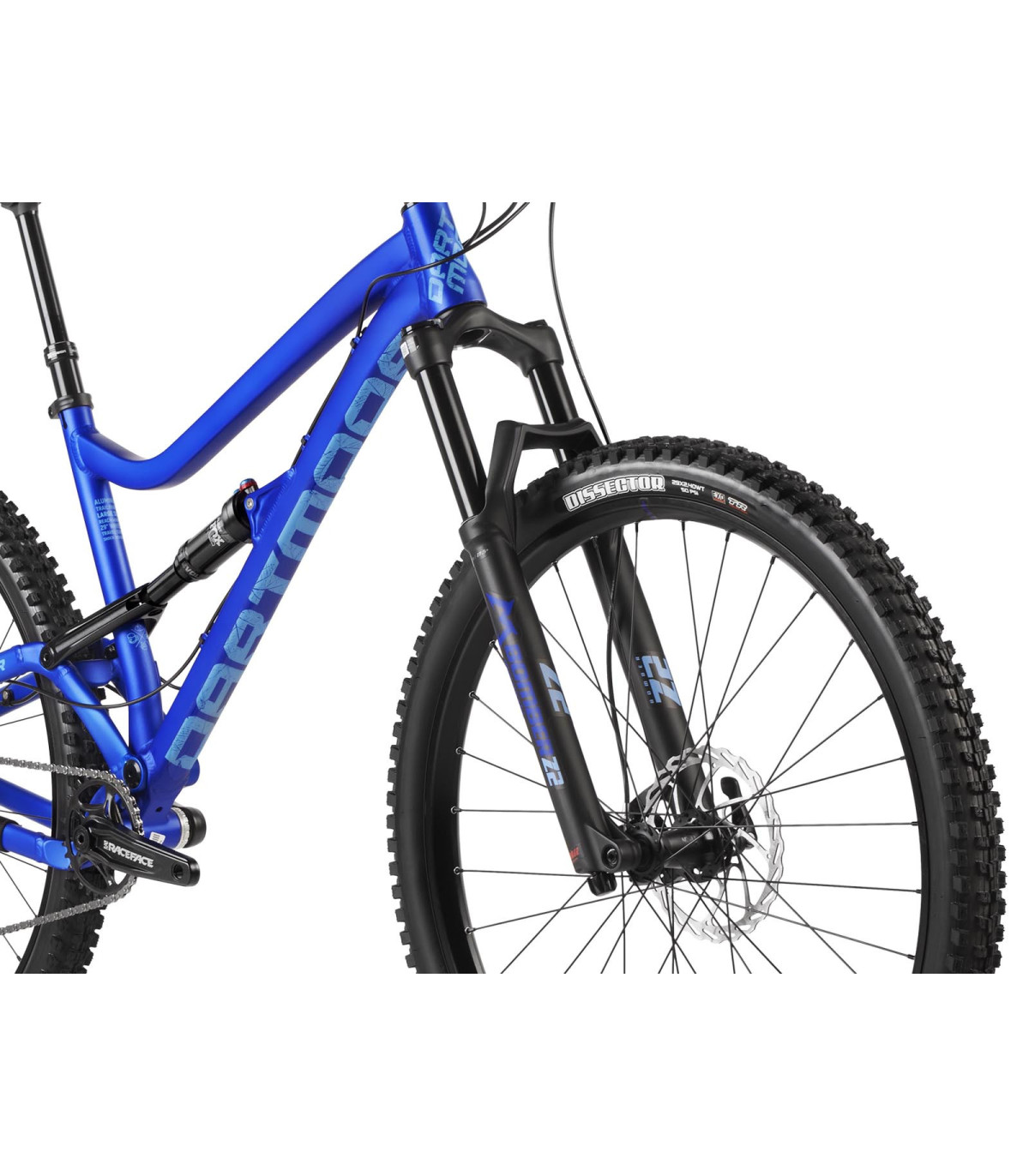

- FORK: Marzocchi Bomber Z2 29", Boost, travel 140mm, axle 15mm, tapered

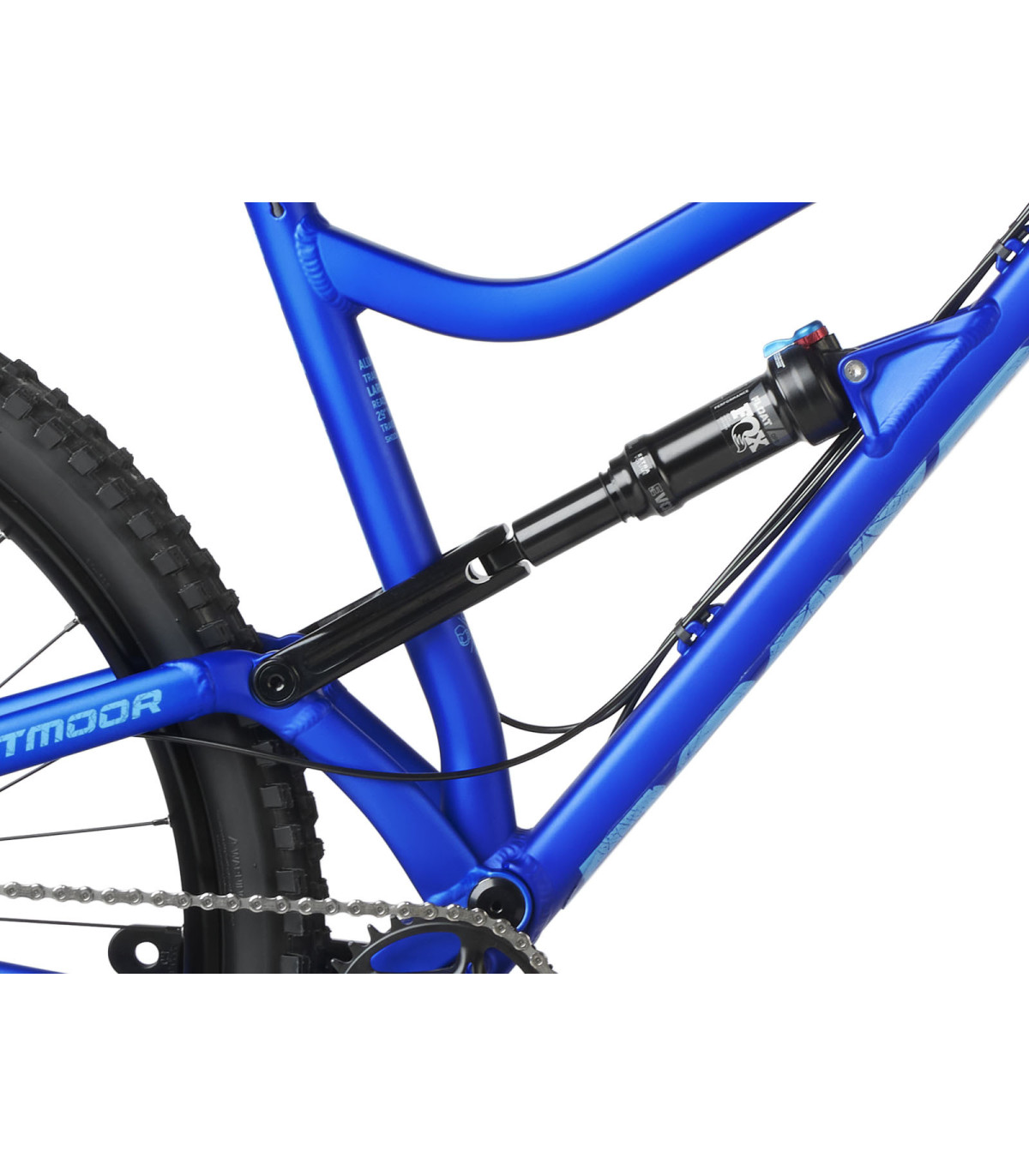

- SHOCK: Fox Float DPS, 210x50mm
- SHOCK HARDWARE: 22.2x8mm
- HEADSETS: Dartmoor Blink OEM
- DERAILLEUR: Shimano Deore M5100 1X11
- SHIFTER: Shimano Deore M5100-R, 11–speed
- BRAKES: Magura MT4N , 2-piston brakes, rotors Magura Storm HC 180mm
- CRANKSET: Race Face Ride, 175mm (XL, L) / 170mm (M)
- CHAINRING: Direct mount 30T
- CASSETTE: Sunrace CSMS7, 11-51T
- CHAIN: KMC X11
- PEDALS: without
- RIMS: Dartmoor Patrol 29", 32H, F/V, tubeless ready
- FRONT HUB: Dartmoor Reel Expert Boost 110x15mm, 32H
- REAR HUB: Dartmoor Reel Expert Boost 148x12, 32H, standard Shimano HG freehub
- TIRES: Maxxis Dissector 29X2.4, WT, Foldable, EXO

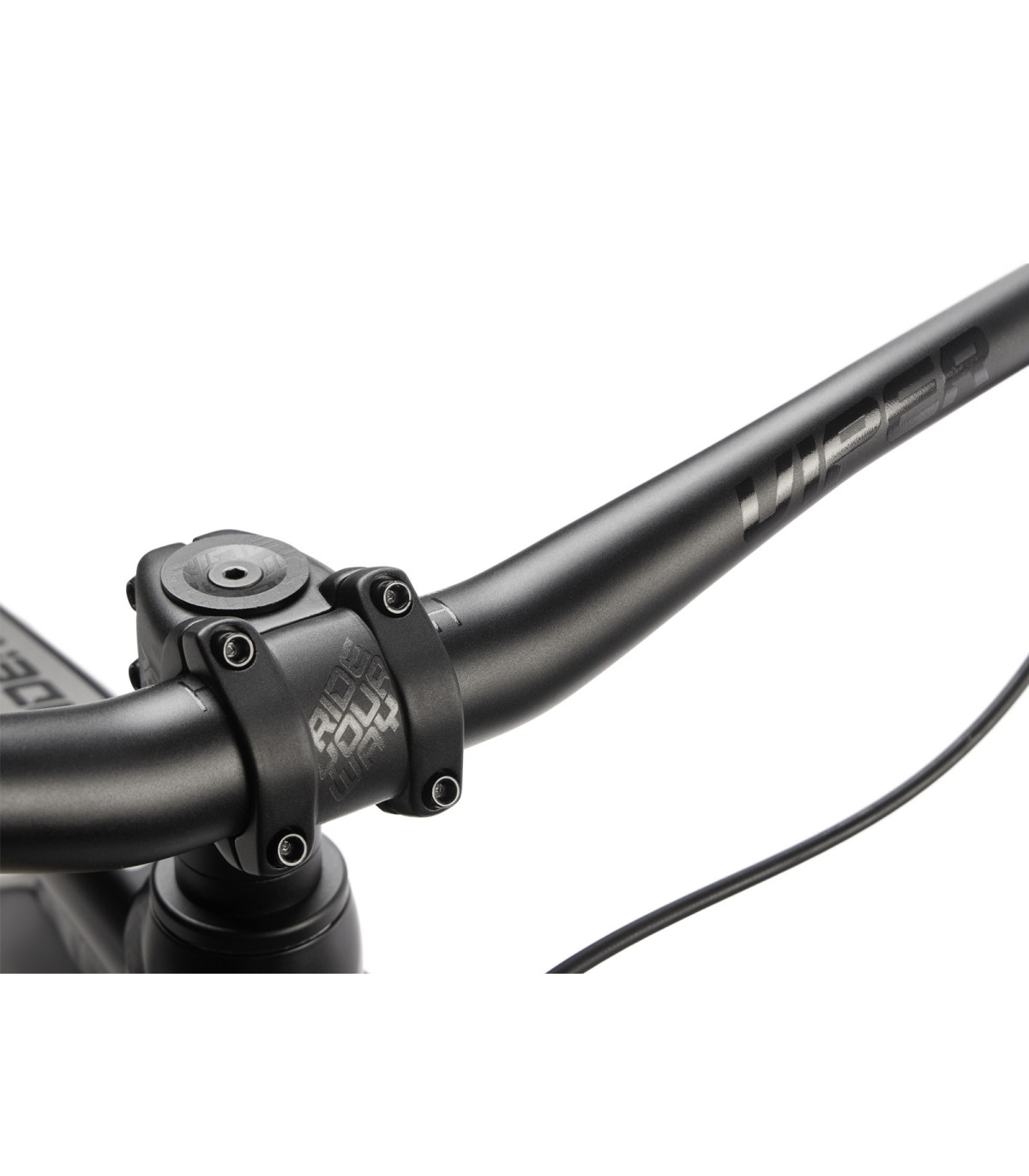

- HANDLEBAR: Dartmoor Viper 810mm, Ø35mm
- STEM: Dartmoor Viper, Ø35mm
- GRIPS: Dartmoor Maze
- SADDLE: Dartmoor Leaf Pro
- SEATPOST: X-Fusion Manic, travel 170mm (XL, L) / 150mm (M), Ø30.9mm
- WEIGHT: 15.15kg (w/o pedals)
