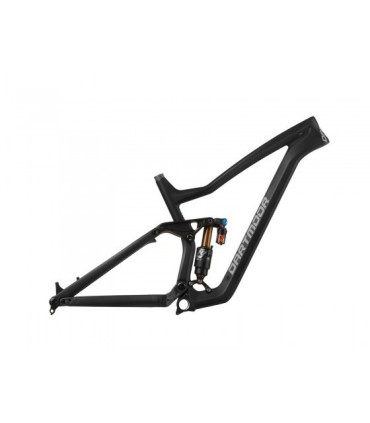

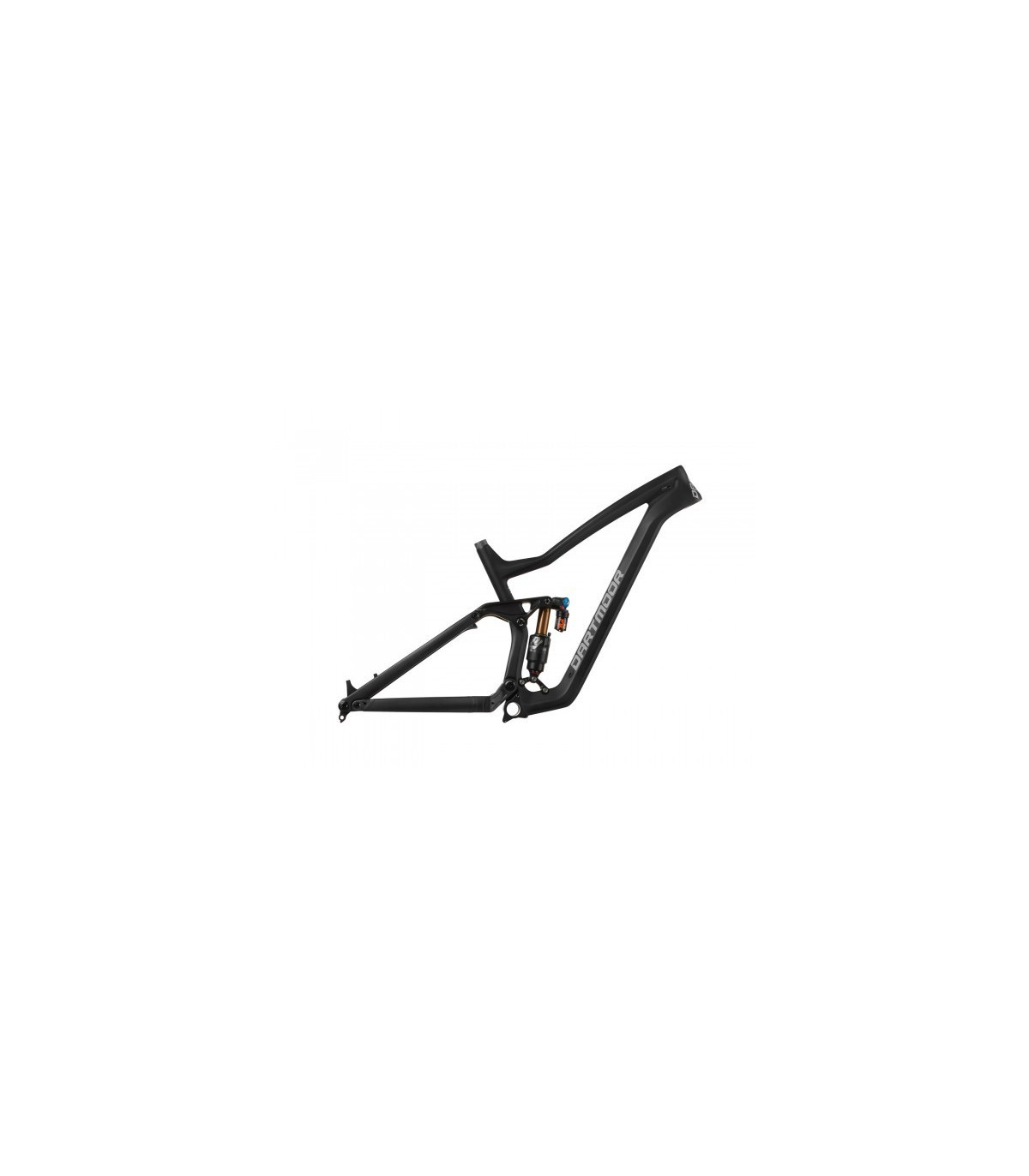

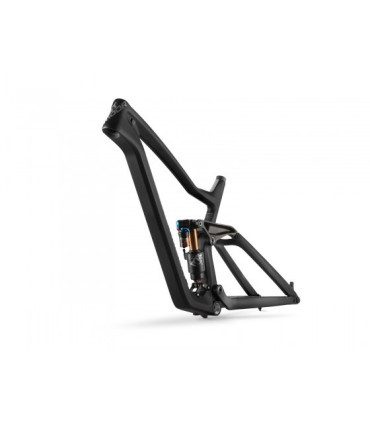

Dartmoor Carbon Frame Thunderbird CF with Fox Float X2 Factory 205x65mm shock, Boost, matt Black/Grey, Large

Thunderbird CF is an all-new carbon enduro frame, dedicated to difficult terrain and riding conditions. With perfect lateral stiffness, it is a great 29-er enduro machine with aggressive geometry and 160mm of progressive frame travel. Thunderbird CF will work great with modern heavy-duty forks with 160-170mm travel. Despite the big wheels, the new Thunderbird CF has the Dartmoor DNA and it will not let you down on big jumps, drops, or even in bike parks. For keeping the frame trouble-free, all pivot points are working on the stiff axles mounted on the sealed Max-type bearings.

The progressive suspension design of the Thunderbird CF is perfect for both types of shocks: spring shocks and large-volume air shocks. The construction also reduces the negative impact of braking on the suspension operation. The front triangle and seat stays are made of high-quality carbon fibre with increased wall thickness for better stiffness. The massive rocker is made of one piece of forged aluminum. To ensure the proper strength and durability the whole chainstay and the inserts in the points that are the most exposed to overload in carbon material are made of aluminum as well.

Before we decided to launch the Thunderbird CF frame for mass production, it not only passed a series of tests on a load machine, where the overloads were much more significant than required by the standards but it was also strictly tested on the toughest trails of many European enduro races.


SPECIFICATION:

• Shock Hardware: Trunnion/20x8mm
• Weight: 2.7kg (w/o shock)
• Colors: matt Space Blue, matt Black/Grey
• Sizes: M, L
• Shock Options: w/o shock; w/Fox X2 Factory Float HSC/LSC/HSR/LSR shock
• Frame Travel: 160mm
• Recommended Fork Travel: 160-170mm
• Shock Size: 205x65mm
• Max Chainring Size: 36T
• Max Tire Size: 29x2.6"
• Hub Size: 148x12mm
• Post/Clamp Diameter: 30.9mm/34.9mm
• Headset Type: IS42/IS52
• Derailleur Hanger: SRAM UDH
