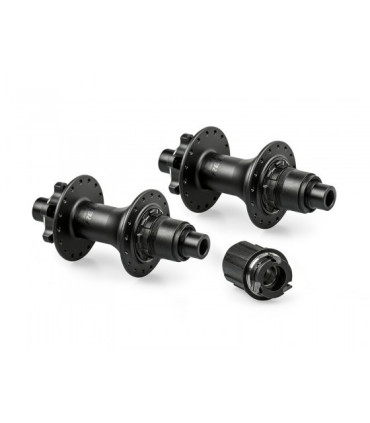

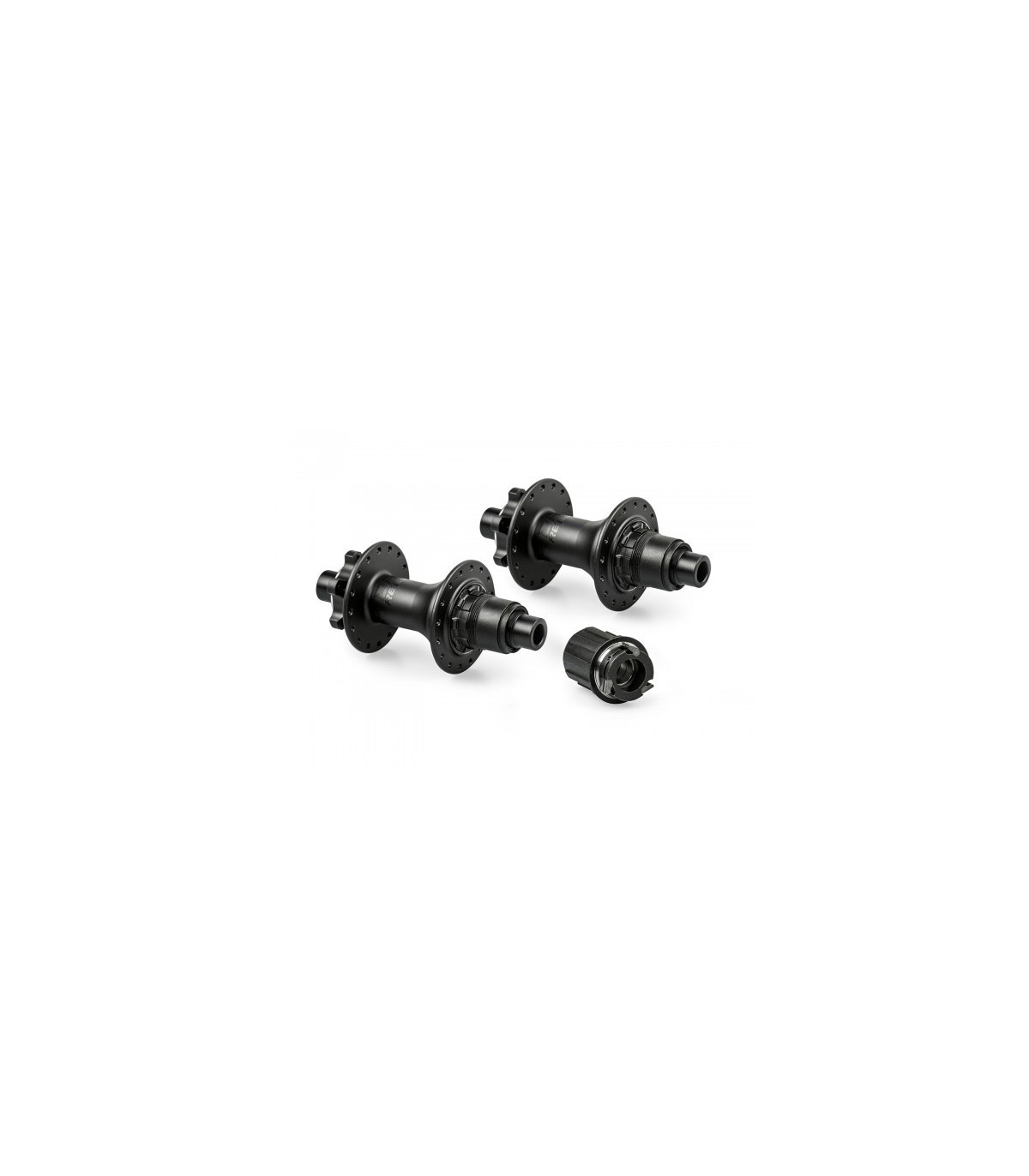

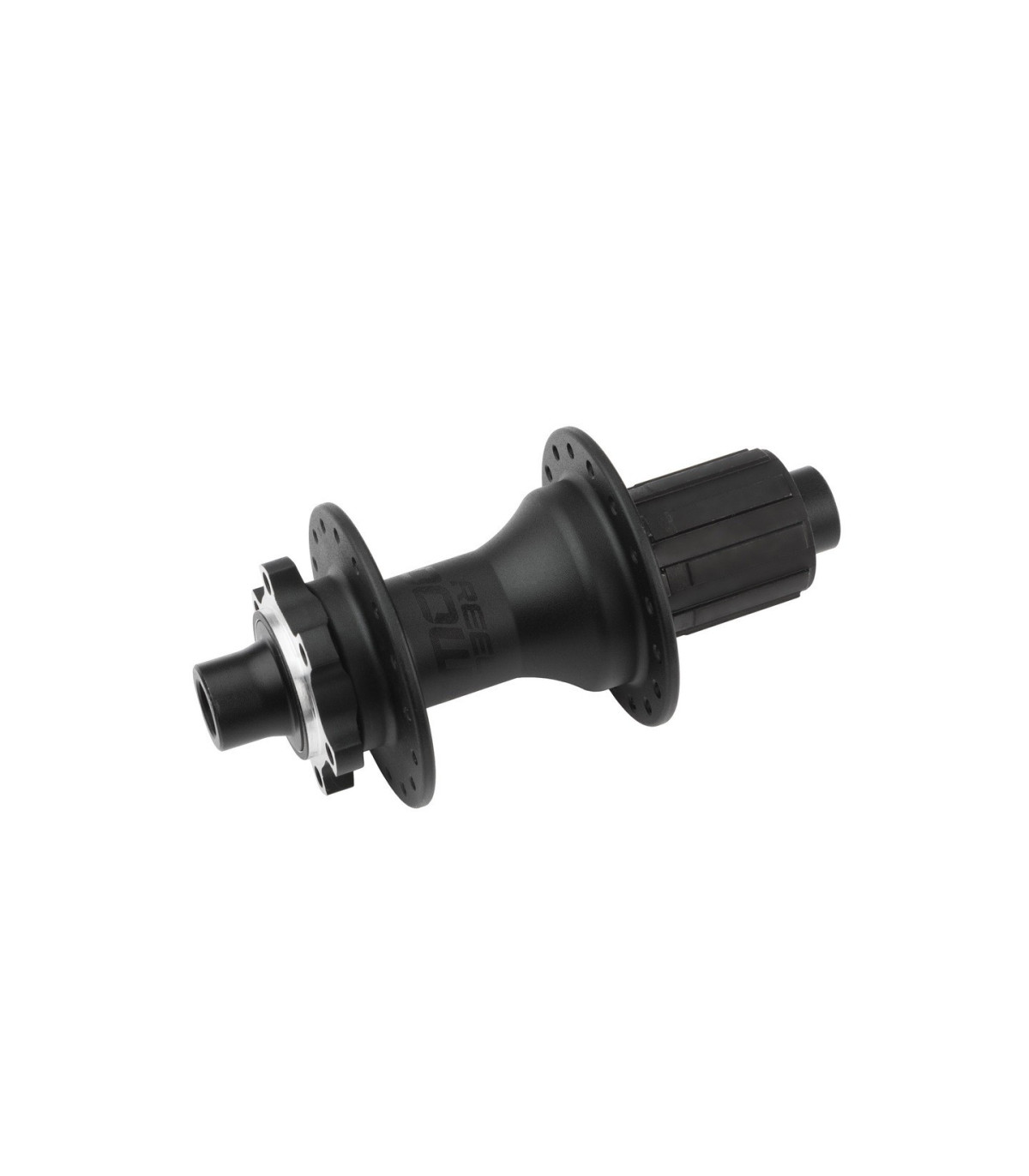

Dartmoor Hub Reel v.2, Rear, 135/142x12mm, Shimano HG, 32H, Black Anodized
Dartmoor Hub Reel v.2, Rear, 135/142x12mm, Shimano HG, 32H, Black Anodized View larger

Dartmoor Hub Reel v.2, Rear, 135/142x12mm, Shimano HG, 32H, Black Anodized

  • DART-A2862
  • New

$ 87.14



Reel v.2 hubs are designed for Trail, Enduro and Freeride use. Equipped with reliable steel freehub with 3-pawls system.
They have 5 high-quality sealed bearings with custom selected Mobil waterproof grease and full contact seals.

Reel v.2 hubs are designed for Trail, Enduro and Freeride use. Equipped with reliable steel freehub with 3-pawls system.
They have 5 high-quality sealed bearings with custom selected Mobil waterproof grease and full contact seals.
These hubs are available either in 148x12mm Boost size or 142/135x12mm size with common Shimano HG or SRAM XD freehubs.
Thanks to the QR adapter available as a spare part, this hub can be also transformed from 135x12mm to 135x10mm size.

The second generation of Reel rear hubs has a third bearing added inside the freehub body to increase durability
when working with a 12-speed drivetrain and cassettes with the biggest cog size 50T or more.

Specification:
  • Color: black anod.
  • Size: 142/135x12mm
  • Bearings: 5 precision sealed bearings with high-density grease and full contact sealings
  • Bearings-type: body: 2x6902; freehub Shimano Hg: 3x6902;
  • Hub-shell: AL 6061–T6
  • Axle: 12, steel Cr-Mo
  • Cones: AL 7075–T6, push–in (both sides)
  • Freehub: common Shimano Hg
  • Pawls: 3
  • Number of holes: 32
  • Weight: 433g (135/142x12mm)
